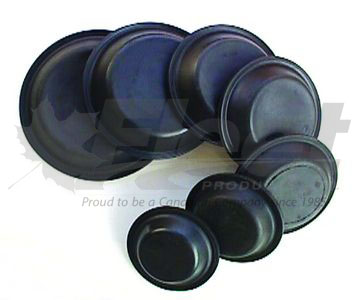

FP234433 – TYPE 9 DIAPHRAGM
PART NUMBER(S):
Fleet Products: FP234433 (New) | Replaces OE: Bendix 234433 | Automann 179.DT9, 179DT9 | Dayton 12-40009, 1240009 | Euclid E8888 | Haldex DP09, 18090 | Meritor 2797B1042 | Midland N200316 | Anchorlok 40M009, 962001 | BWP M460 | Black Max 9 | MGM Brakes 8017109 | Power Equipment -PDC T9 | Provincial Whse -CAN M460 | TMR T1023 | TSE 100090 | Tramec 53009 | Velvac 031021 | Wagner F39185 | Western Star 827395 | Other 301977R1, BX234433
DESCRIPTION:
Model: Type 9 Air Brake Chamber Diaphragm
Vehicles: Commercial trucks, trailers, off-road equipment using Type 9 chambers
• Application: OEM or aftermarket air brake chamber maintenance
• Compatibility: Interchangeable with competitive rubber and neoprene diaphragms
• Diameter: 5.000 in
• Height: 1.75 in
• Material: Rubber/neoprene blend
• Construction: Fabric reinforced
• Operating Temperature: -40°F to 212°F
• Design: High-flex compound for harsh operating environments
• Feature: Airtight seal, long service life
Applications:
Engineered for use in Type 9 air brake chambers on heavy-duty trucks and trailers. This diaphragm maintains sealing integrity and pressure control under extreme conditions, delivering reliable performance in daily commercial operations.
CROSS-REFERENCE(S):
234433, 234433BXW, 236663, BD9, DP09M1D, BW234433, 18090, DP09, KN18090, N200316, 179.DT9, E-8888, 12-40009, WAKN18090, KN-18090, 200316, 2797B1042, E8888, BD09, RF540015396, MDP-4090, 4090, 827395, 64SM14, 745-234433, BX234433, 301977R1, 871-929-R, 301977R, 8971204954, 461209, D09, M-5125, F39185, 151-9, 1519, RB-D9, RB-D09, GT-5205, TKL24009, 9175, TYPE 9 62019, 8017109, 1257928, 234433K, 031021, T9, D9, BER234433, BER-234433, 234433C8T, S 234433, MPGS-5022, ATX5022, 234433-RC, GTP234433, ATP5022, 5022SS, VIP234433, 234433HTP, GTS5022, PS234433, TF 234433
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Confirm diaphragm diameter (5.00"–5.12") and stroke (1.75") match the chamber specifications
✔ Install only in certified Type 9 brake chambers
✔ Use OEM-compliant torque specs and procedures
✔ Inspect for any wear or damage prior to installation
✔ Contact Fleet Products for technical assistance
