FP234099 – TYPE 20 DIAPHRAGM
PART NUMBER(S):
Fleet Products: FP234099 (New) | Replaces OE: Bendix 234099, 802488, 234099N | Automann 179.DT20, 179DT20 | Tectran 151-20, 15120 | CAT 5K7405 | Dayton 12-40020, 05020, 1240020 | BWP M-463, M463 | Euclid E8891 | Haldex DP20, M4031540, 18200 | IHC 871932R1 | Midland KN18200, N20145 | Anchorlok 1133M009, 2602001 | Black Max 20 | MGM Brakes 236666, 8017120, 8017520 | Power Equipment -PDC T20 | Provincial Whse -CAN M463 | TMR T1026 | TSE 100200 | Tramec 53020 | Velvac 031027 | Wagner 928020 | Other BX234099N, BX236666, VEL031027
DESCRIPTION:

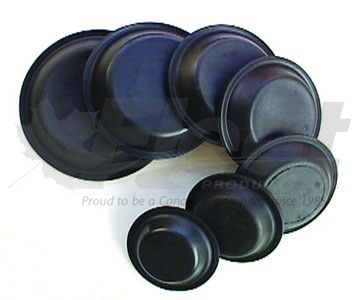

Model: Type 20 Air Brake Chamber Diaphragm
Vehicles: Suitable for heavy-duty trucks, trailers, and commercial air brake systems
• Application: Type 20 spring and service brake chambers
• Compatibility: Direct fit for OEM and aftermarket brake chambers
• Stroke: 2.25-2.50 in
• Diameter: 6.550 in
• Height: 1.295 in
• Material: High-performance rubber compound
• Operating Temperature: -40°F to 212°F
• Performance: Maintains optimal air pressure seal during service and parking brake operation
Applications:
Designed for use in heavy-duty air brake systems requiring a Type 20 diaphragm. Ensures reliable containment of air pressure in spring and service brake chambers under demanding conditions. Compatible with a wide range of OE and aftermarket chamber assemblies.
CROSS-REFERENCE(S):
234099, 234099N, 236666, 802488, BD20, MIDDP20, DP20M1D, ETPDP20, 234099BXW, 20225, 42000, 18200, DP20, KN18200, M362000, M4031540, N20145, N20145C, 2062001, MA4031540, E-12732, E-8891, 12-40020, T20, 928020, RF220012619, 2797C107, R8708891, E8891, 1-125, 1614797, V338458, EM42000, MDP-4200, 4200, 8971205204, 137144R1, 871-932-R, ZZ18200, 871932R, 137144R, 5396-N20145, 64SM18, 64-SM-18, HDX DP20, FUL 20225, BW234099N, BW234099, D20, PL-D-20, BEN234099N, BAN234099N, 2299483, 338458, 745-234099N
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Confirm diaphragm diameter (6.56") and stroke (2.25"–2.50") match chamber specifications
✔ Use only in certified Type 20 brake chambers
✔ Follow OEM torque and diaphragm seat guidelines
✔ Inspect chamber components before installation for wear or contamination
✔ Contact Fleet Products for expert support if fitment is uncertain
