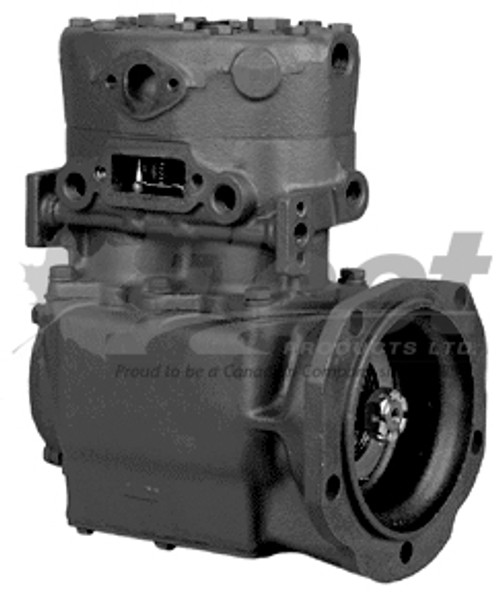

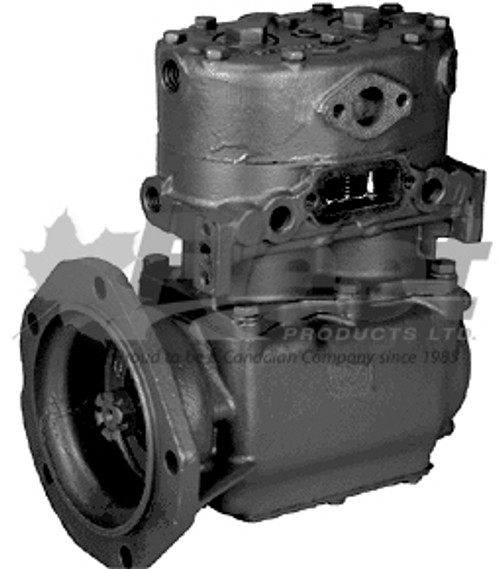

TF-700 DETROIT COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 289925X (Reman) | Replaces OE: Bendix 101378, 101649, 101969, 101974, 102302, 102629, 102967, 102968, 103918, 104601, 104715, 106858, 279762, 280525, 280609, 280627, 280897, 281527, 282400, 282413, 283972, 284803, 284804, 285187, 285370, 286444, 286467, 287024, 289123, 289262, 289265, 289281, 289321, 289323, 289328, 289343, 289351, 289495, 289648, 289716, 289753, 289811, 289866, 289925, 289926, 289939 | Detroit: 5000943, 8921207, 8929472, R8921207 | Navistar 278668C92, 287668C91, 287668C92, 468579C91, 476522C91, 866781R91, 990003C91, 990003C92, 990419C91, 994866C91 | Mack 745-289925X, 745289925X, 745X289925
DESCRIPTION:
Model: TF-700 Detroit air brake compressor
Vehicles: Detroit Diesel engine applications in heavy trucks, trailers, semi trucks, and 18 wheelers
• Bore x Stroke: 2.75 in x 1.81 in
• Discharge Line: 5/8 in OD copper
• Oil Return Line: 5/8 in OD
• Oil Supply/Unloader Line: 1/4 in OD
• Coolant Line: 1/2 in OD
• Air Inlet: Left
• Air Outlet: Left/top; optional top or side
• Discharge: Threaded
• Mounting: Flange mount
• Drive: Engine driven
• Cooling: Water and air cooled
• Lubrication: Engine oil feed
• Cylinders: 2
• Displacement: 15.5 CFM at 1250 RPM
• Maximum RPM: 3000, naturally aspirated
• Minimum Coolant Flow: 2.5 GPM at maximum RPM
• Minimum Unload Pressure: 60 PSI
• Maximum Temperature: 250°F inlet / 400°F discharge
• Function: Pressurizes air for brake actuation
• Interchange: EL16050X
CROSS-REFERENCE(S):
0101378, 0101649, 0101969, 0101974, 0102302, 0102629, 0102967, 0102968, 0103918, 0104601, 0104715, 0106858, 0279762, 0280525, 0280609, 0280627, 0280897, 0281527, 0282400, 0282413, 0283972, 0284803, 0284804, 0285187, 0285370, 0286444, 0286467, 0287024, 0289123, 0289262, 0289265, 0289281, 0289321, 0289323, 0289328, 0289343, 0289351, 0289495, 0289648, 0289716, 0289753, 0289811, 0289866, 0289925, 0289926, 0289939, 04625289925X, 08929472, 101378X, 102967X, 103918X, 104601X, 104715X, 106858X, 15567219, 15567219CGRM, 175289925X, 280609X, 280627X, 289328X, 289925B1, 289925BXR, 5000943X, BEN-289925X, BAR289925, BDR289925X, BEN289925X, BEX289925X, BNE289925, BNE289925X, BW 289925X, BW R289925, BWR289925, BWX289925X, BX 289925X, BX289925X, BXX289925X, EL16050, E-BN289925X, EX289925X, H289925X, HVG289925X, R289925/CR, R955280609X, R955289925X, ZZ289925X
A cross-reference listing means this part is a suitable replacement for the part numbers listed.
IMPORTANT INSTALLATION NOTES:
✔ Confirm left head rotation and left block rotation match the original compressor
✔ Confirm gear drive engagement before mounting the compressor
✔ Replace all mounting gaskets and seals during installation
✔ Ensure coolant, oil, and air passages are clean and unrestricted
✔ Prime the compressor with clean engine oil before initial startup
✔ Check for air, oil, and coolant leaks after the system reaches operating pressure
✔ Torque all mounting hardware and fittings to OEM specifications
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
