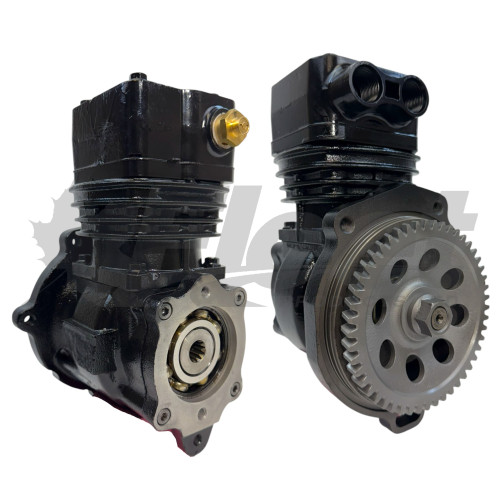

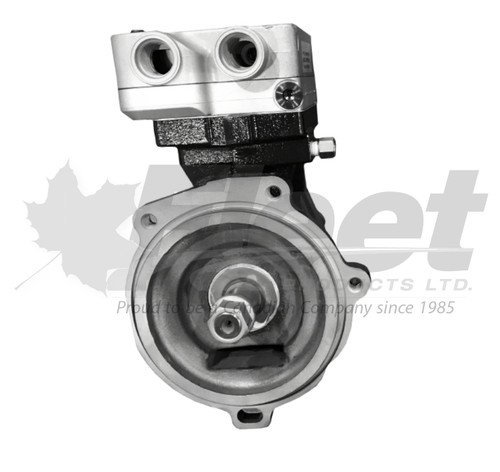

KN7700JX EL292 MIDLAND GM/ISUZU AIR BRAKE COMPRESSOR – REMANUFACTURED
PART NUMBER(S):
Fleet Products: KN7700JX (Remanufactured) | Replaces OE: Midland: 1657080013, KN7700J, KN7700CX | Wabco: 9111530120X | GM: 15284284, 19258241, 25882006 | Isuzu: 8-19258-241-0, 8192582410 | Ford: D0HA2B200C
DESCRIPTION:
Model: Midland EL292 Single-Cylinder Air Brake Compressor
Vehicles: GM and Isuzu 292 engine applications
• Bore Diameter: 90 mm
• Stroke: 46 mm
• Displacement: 292 cc
• Water Port: M18 × 1.5 STOR
• Governor Port: M10 × 1.0 STOR
• Discharge Port: M27 × 2.0 STOR
• Air Inlet: Ø20.5 mm, non-threaded, top mounted
• Head Assembly: 9111539212AH
• Mounting: Engine flange mount
• Cooling: Air and water cooled
• Drive Type: Engine driven with tapered shaft
• Configuration: Fixed orientation
• No. of Cylinders: 1
Applications:
Used on GM and Isuzu commercial vehicles equipped with Midland EL292-style air brake compressors. This engine-driven compressor supplies compressed air for brake and auxiliary pneumatic systems and is commonly replaced due to reduced air output, leakage, or internal wear.
CROSS-REFERENCE(S):
6814290944, 704179AT, 8074524, 9348990030, 9348990090, 990689C91, D0HA2B200C, DOHA2B200C, N7700, N7700C, NMD15284284, N30162AA, N30162CA, N30162EA, N30162GA, N30162KA, N30162MA, N30162MB, N30162PA, NA30162AA, R955KN34110X, RN30162PA,
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Reuse existing fittings and drive gear where applicable; check valve not included
✔ Flush oil, coolant and air lines before installation
✔ Verify fixed compressor orientation before installation
✔ Use new mounting gaskets and tighten fasteners to OEM specifications
✔ Ensure tapered shaft is fully seated and correctly aligned with the engine drive
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
