Description

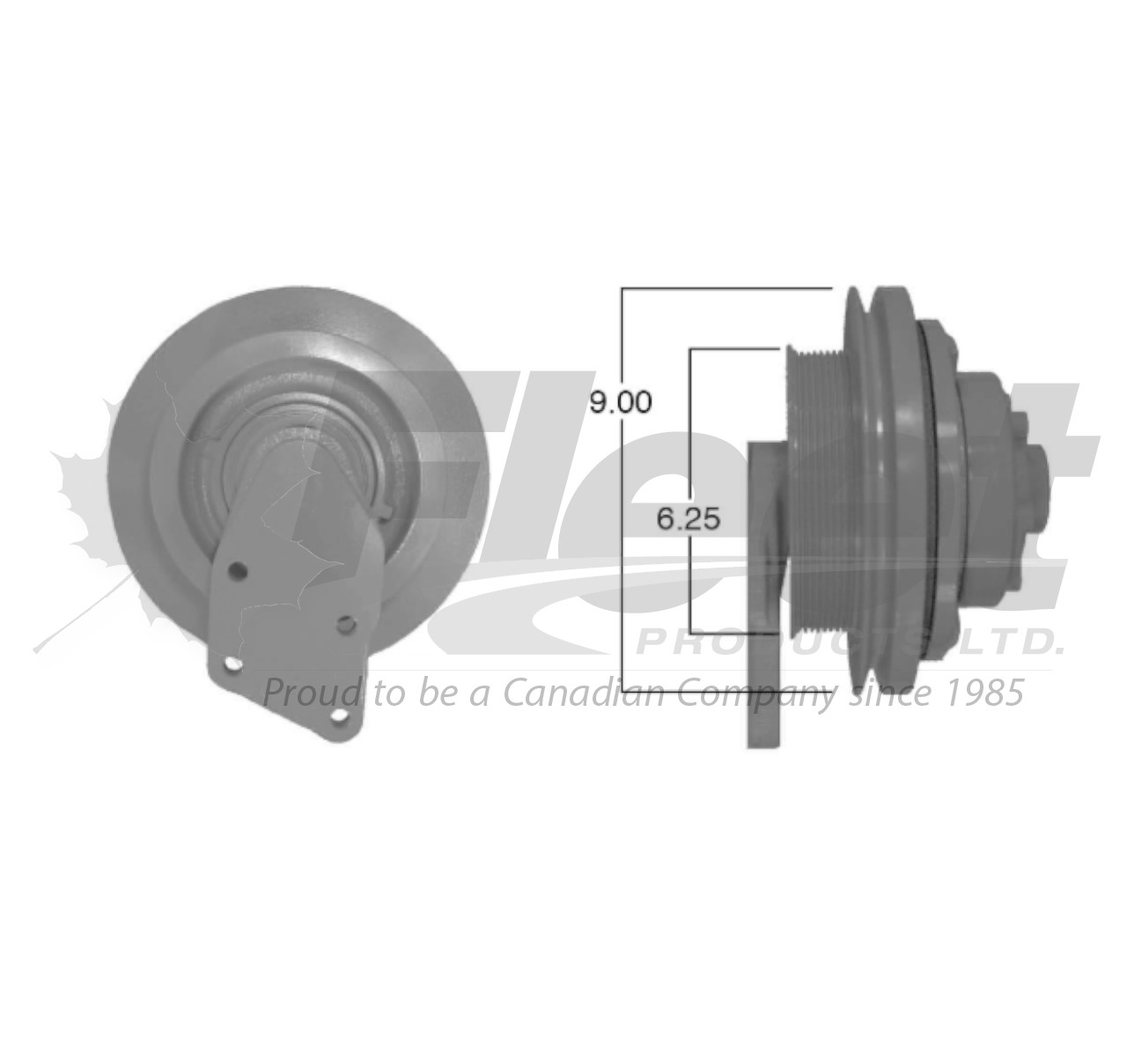

KB790015X - S ADVANTAGE REMAN FAN CLUTCH (CATERPILLAR 3176)
PART NUMBER(S):
Fleet Products: KB790015X (Remanufactured) | OE: 790015 HORTON, 05-11369-031 PETERBILT, 980017 HORTON, 20092A FACET, 90015 KIT MASTERS
DESCRIPTION:
Model: S Advantage
Vehicles: Freightliner (Caterpillar 3176)
• Clutch Type: On/Off, Air-Actuated
• Model Family: S-Type
• Belt Groove: Serpentine Belt
• Friction Plate Diameter: 7.5″
• Fan Pilot Diameter: 2.00″
• Pulley Type: 6.25″ V-Belt
• Back Pulley Diameter: 9.00″
• Front Pulley Diameter: 6.25″
• Belt Configuration: 8K, 2V
• Belt Groove Location: 1.08″
• Bolt Circle: 3.50″
• Fan Blade Stud Length: 1.05″
• Stud Thread Size: 3/8-16
• Vertical Mounting Distance: 2.00″
• Horizontal Mounting Distance: 2.32″
Applications:
Need a direct OE-match fan clutch for your Freightliner with a Caterpillar 3176 engine (1988–1993)✔ The KB790015X S Advantage reman unit delivers robust on/off cooling performance, engineered for dual-belt serpentine applications with 7.5″ friction plate and 2.00″ pilot compatibility.
CROSS-REFERENCE(S):
990030, KB790015, RF790015X, 590015, 980026, 980056, 980071, 980017, 990083, 990091, 990133, 90008, 7500HP, KMN2090015, KM N20 90015, ABPN2090015, ABP N20 90015, FLT90015, KMI90015, 3443-90015, 79A0015, 90015, 98A0015, 99A0015, FC790015, 990118, HOR790015, KM90015, ZBH790015A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Always inspect fan pilot and pulley alignment before installation
✔ Use new fasteners where specified by OE torque requirements
✔ Confirm clearance and belt routing for dual-groove configurations
✔ Ensure friction plate is not contaminated during install
S Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?
• Canadian-owned since 1985• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee | Find a better price? We'll beat the difference by 10%!
