294205 - HORTON S & HTS SERIES FAN CLUTCH MINOR SEAL KIT - NEW
PART NUMBER(S):
Fleet Products: 294205 (New) | Replaces OE: Horton: 994205, 994370, 894205 | Kit Masters: 4205, KMN204205 | Alliance: ABPN204205 | Fleetrite: FLT4205
DESCRIPTION:
Model: Horton S & HTS Series Fan Clutch Minor Seal Kit
Vehicles: Medium- and heavy-duty trucks equipped with compatible Horton S and HTS Series fan clutches

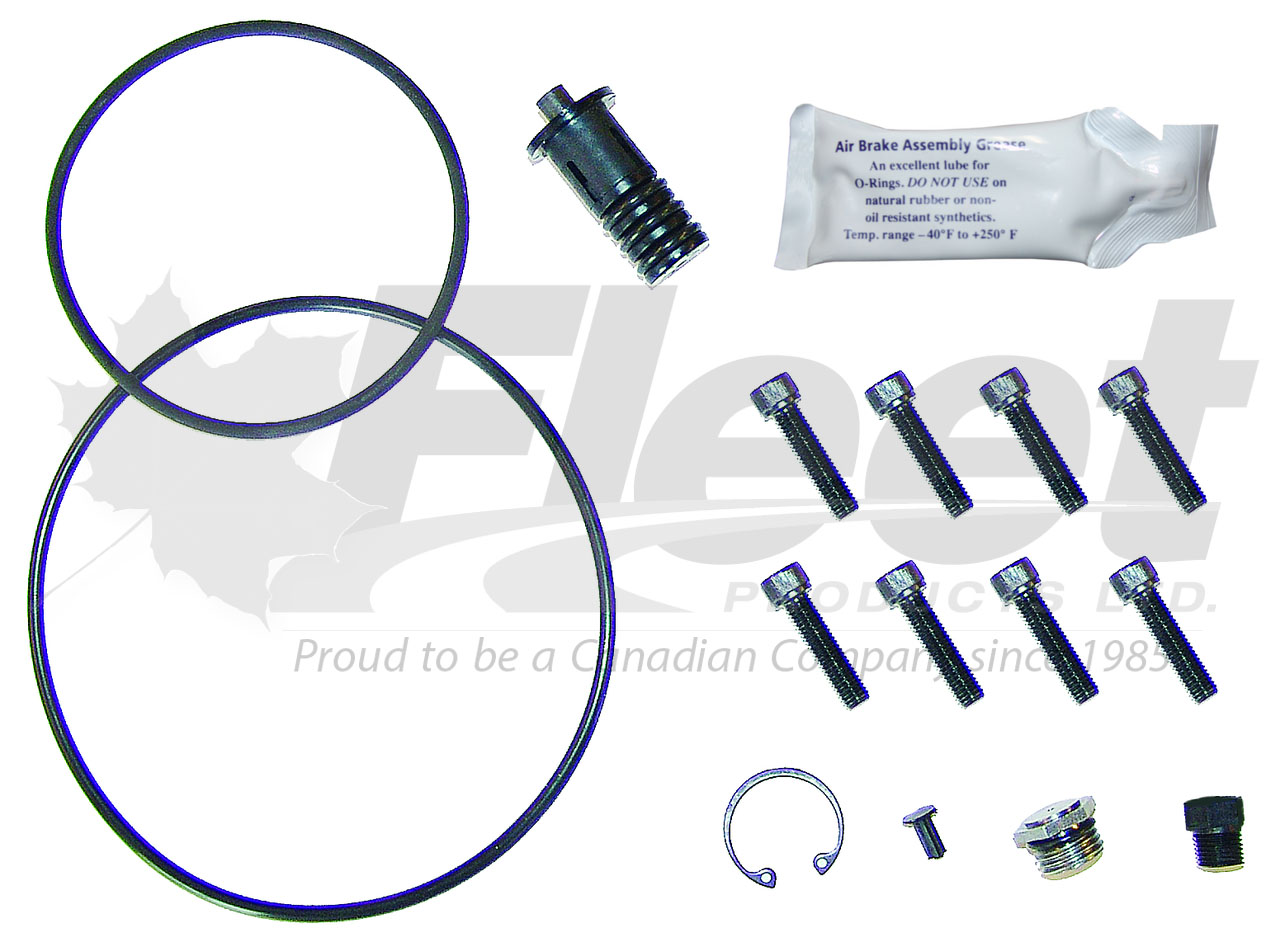

Kit Contains:
• Essential O-Rings
• Air-Chamber Sealing Components
• Air-Brake Grease rated from 40°F to 250°F
This minor kit does not include the piston assembly, bearings, or friction facing.
CROSS-REFERENCE(S):
6L6346, 6L-6-346, KM N20 4205, ABP N20 4205, 994370H0RRF, 994370H0R, KMI4205, 3443-4205, 3912-994205, 3912-894205, 3912894205, KIT4205, 3912994205, 812.94205BP, HOR 994205, HOR 994370, 1118160, E-824102, S-14513, S14513, FC994370, HO 994370, HO994370, HOR-994205, HOR-994370, HOR994205, HOR994370, ZBH894205, K5 4205, K54205, KC4205, KTM-4205, KTM4205, HT994370, ECHFA5, 1000-794370, 1000794370, 3912-994370, 3912994370, 794370, 85151967, RC794370, ZBH994370
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm the fan clutch is a compatible Horton S or HTS Series model before beginning service.
✔ Depressurize the air system and clean all seal grooves, air passages, and mating surfaces thoroughly.
✔ Apply the specified grease lightly to the O-rings and sealing surfaces; keep friction surfaces free from contamination.
✔ Inspect the piston, air chamber, shaft, and friction facing for wear that may require a major or super kit.
✔ Torque all hardware to Horton specifications and test the clutch for air leakage, engagement, and release.
