294307 - HORTON S SERIES 7.5" FAN CLUTCH SUPER KIT - NEW
PART NUMBER(S):
Fleet Products: 294307 (New) | Replaces OE: Horton: 994307, 994324 | Kit Masters: 7500HP, KMN207500HP | Alliance: ABPN207500HP | Fleetrite: FLT7500HP
DESCRIPTION:
Model: Horton S Series 7.5" Fan Clutch Super Kit
Vehicles: Kenworth, Freightliner, Volvo, International, and Peterbilt trucks equipped with compatible Horton S Series fan clutches

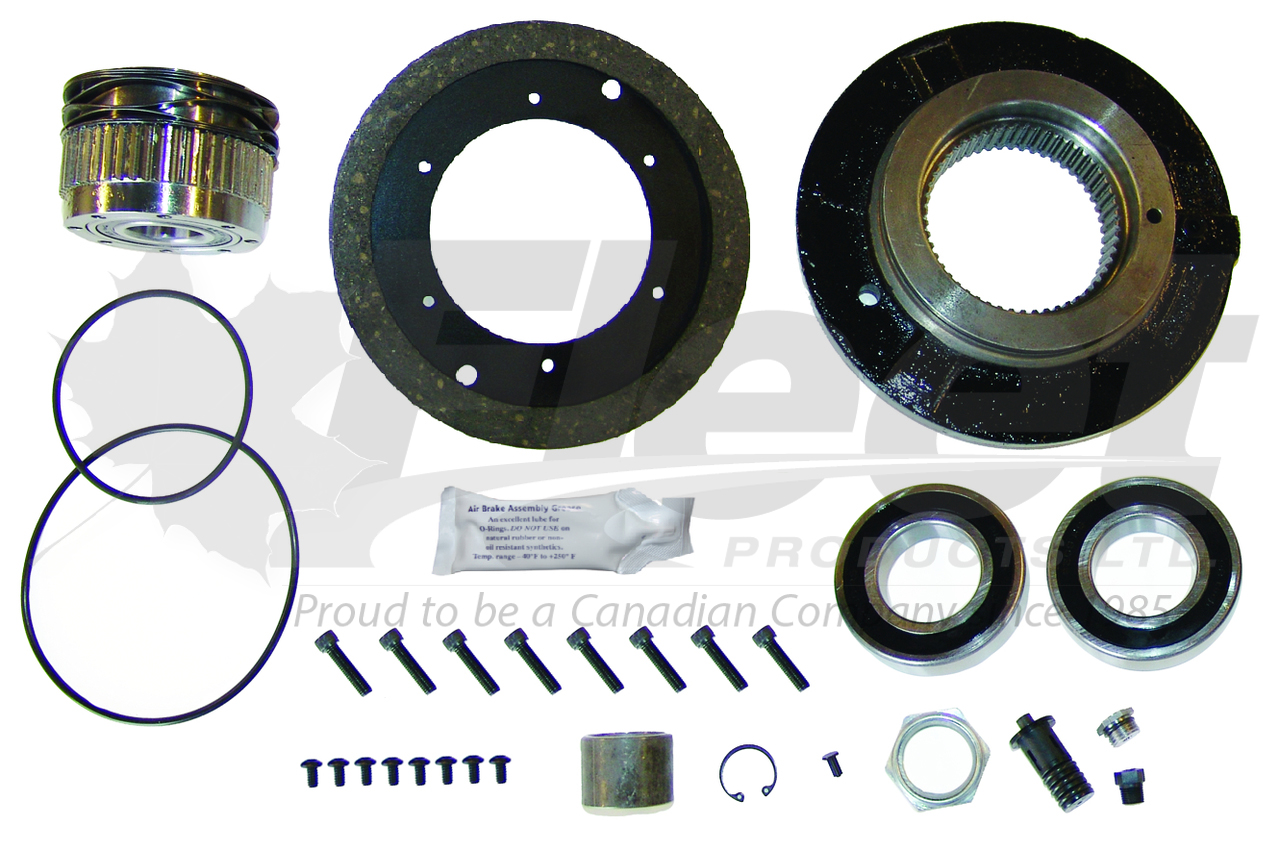

Kit Contains:
• 2 × 6206 Horton Fan Clutch Bearings
• 2 × 6209 Horton Fan Clutch Bearings
• 1 × 994205 Horton Minor Seal Kit
• 1 × 994212 Horton S-Series Friction Lining
• 1 × 994265 Horton Replacement Locknut
• 1 × 994364 7" Horton P.F.D. Plate
• 1 × S & HTS Spline Assembly
• 1 × Bearing Spacer
• 1 × Horton Wave Spring Assembly
• 1 × Horton Clip Assembly
CROSS-REFERENCE(S):
7500HPKM, KM N20 7500HP, ABP N20 7500HP, KMI7500HP, 3443-7500HP, 994307RF, 994307-HO, 994307HO, FC794307, 1000-794307, 1000794307, 3912-994307, 3912994307, 794307, HOR994307, HI994307, HR994307, HRHOR994307, HT994307, HTHOR994307, HC994307, K794307, MDRF994307, MIRF994307, MSHC994307, MSMDRF994307, NJ994307, R994307, RC794307, RF994307, TWD994307, ZBH994307, XX994307, XX-994307, S 994307, 994307C8T, 994307-RC, GTP994307, VIP994307, 994307HTP, PS994307, TF 994307, EBP994307, GSTP994307, HDE 994307, VPPXX994307, PF994307, PRO994307, NMD994307-S, NMD 994307, GG-994307, 994307KTP, E-824100, E824100, E-824104, E824104, S-14676, S14676, MPGS-14676, ATX14676, ATP14676, GTS14676, UNI14676, KG14676, UPTS14676, EM15760, PT894307, 894307P, 1656980C91, 3945412, 829882, ABPN20994307, 990075, 990075X, 7500, HP7500, BCU-7500
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm the fan clutch is a compatible Horton S Series 7.5" model before beginning the rebuild.
✔ Clean and inspect the sheave, shaft, splines, air chamber, cartridge, and friction surfaces for wear or damage.
✔ Replace all supplied seals, bearings, friction components, and hardware during the overhaul.
✔ Apply the supplied O-ring and spline lubricants only to the specified surfaces; keep the friction facing clean and dry.
✔ Seat the piston and cartridge assemblies correctly, torque all hardware to Horton specifications, and test pneumatic operation.
