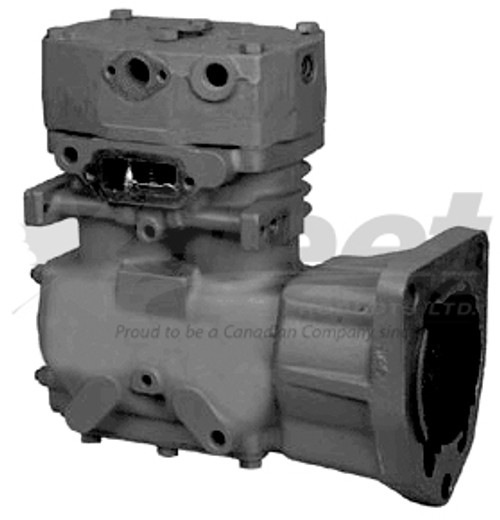

289340X – TF-700 MACK COMPRESSOR (EXTENDED FLANGE MOUNT)
PART NUMBER(S):
Fleet Products: 289340X (Remanufactured) | OE: 745X289340, 04625289340X, 175289340X
DESCRIPTION:
Model: TF-700 Mack Air Brake Compressor
Vehicles: Mack (Extended Flange Mount Models)
• Cooling: Water Cooled
• Air Inlet Location: Right
• Air Outlet Location: Right or Top
• Discharge Type: Threaded (Optional Right/Top)
• Mounting Style: Extended Flange Mount
• Drive Type: Pulley Drive
• Approximate Weight: 49 lbs
• Equipped for Power Steering
• Core Group: 501E
• Includes Installation Gaskets
Applications:
What trucks use this✔ The 289340X fits Mack heavy-duty trucks with extended flange engine mounts that require high-output TF-700 compressors. It supports both brake actuation and power steering assist systems. EL16111 Compressor may also be used for this application.
CROSS-REFERENCE(S):
289340, E-BN289340, W:BW-289340, BEN289340, BEX289340, 289340BXR, CC289340, 0R289340, 745X289340, E-BN289340, W:BW-289340, BEN289340, BEX289340, 289340BXR, 175289340X, 04625289340X, CC289340, 0R289340A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ View all port locations from rear orientation before installation
✔ Includes installation gaskets for flange sealing
✔ Torque flange bolts to approximately 80–100 ft-lbs (OEM spec recommended)
✔ Compatible with power steering-equipped Mack engine mounts
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
