Description

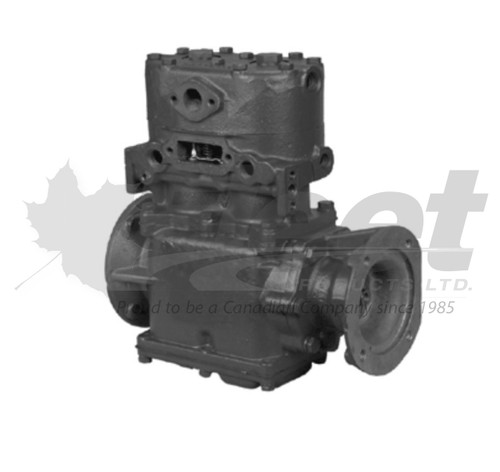

TF-600 CUMMINS COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 280622X (Reman) | OE: 280622, 280369X, 280369, 284018, 283345, 280579, 280310, 280222
DESCRIPTION:
Model: TF-600 Cummins
Vehicles: Cummins Engines, Heavy Trucks, Semi Trucks, 18 Wheelers, Commercial Trucks
• Cooling: Water
• Air Inlet: Left
• Air Outlet: Left
• Mounting: Flange Mount, Extended Case, Engine Drive
• Discharge Type: Flange
• Cylinders: 2
• Bore x Stroke: 2.75 in x 1-11/16 in
• Displ @1250 RPM: 14.5 CFM
• Displ per Rev: 20.0 cu in (327.7 cc)
• Max Speed: 2400 RPM
• Coolant Flow (min @max speed): 2.5 gpm
• HP @1250 RPM /100 PSI: 3.2 HP
• Oil Pressure: 5 PSI idle / 15 PSI governed
• Case: Long/Extended
Applications:
The TF-600 Cummins Compressor (280622X) is designed for use in Cummins engine-powered heavy-duty air brake systems in trucks, semi-trucks, 18-wheelers, and commercial vehicles. This water-cooled compressor features a flange mount, extended case, and left inlet and outlet, making it ideal for demanding fleet applications.
CROSS-REFERENCE(S):
280622X, 280622, 280369X, 280369, CC289342, BAR289342, HVG289342, 104356, 282013, 284924, EL16160, TF600
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Installation kit and gaskets included.
✔ Port orientation is always viewed from rear.
• Park on level surface, apply brakes, block wheels.
• Wear safety glasses at all times.
• Shut engine off and remove key before service.
• Drain all air reservoirs before working on air system.
• Drain purge reservoir if equipped with air dryer module.
• Deactivate vehicle electrical system per OEM procedure.
• Never exceed manufacturer pressure ratings.
• Never disconnect pressurized lines.
• Use only equivalent or OEM-grade replacement parts.
• Replace damaged or stripped components — do not weld or machine unless approved.
• Verify all systems restored before returning vehicle to service.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
