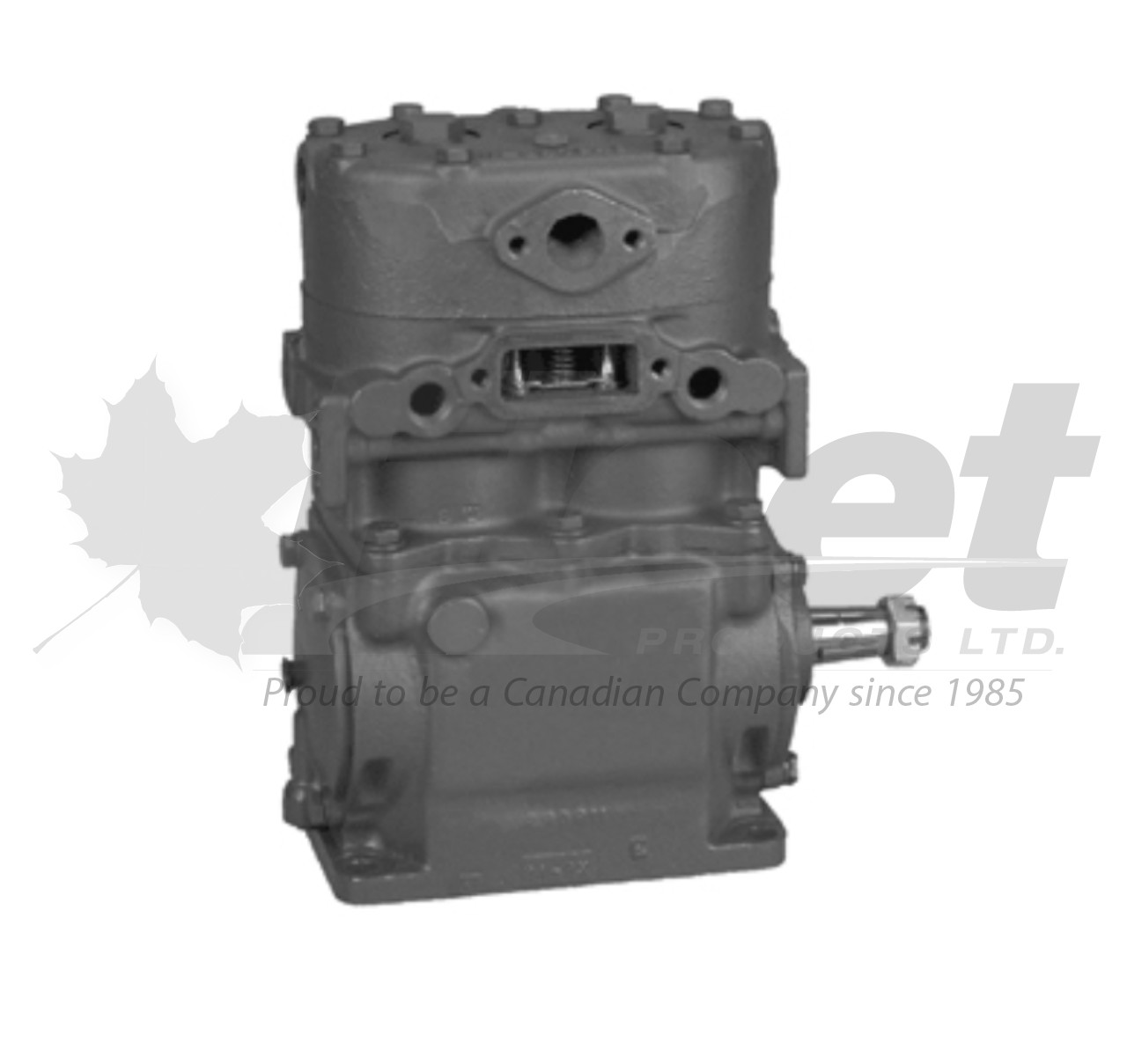

228366X - TF-500 PULLEY DRIVE COMPRESSOR (FORD SIDE MOUNT STYLE)
PART NUMBER(S):
Fleet Products: 228366X (Remanufactured) | OE: 228366, 227320TP, 228366, 275804, 277128, 280388, 281146
DESCRIPTION:
Model: TF-500 Pulley Drive Air Brake Compressor
Vehicles: Ford heavy-duty trucks, commercial chassis (side-mount applications)
• Cooling: Water cooled
• Mounting Style: 4-hole side mount (Ford style)
• Drive Type: Pulley (belt) drive
• Air Inlet Port: Right side (viewed from rear)
• Air Outlet Port: Right side (viewed from rear)
• Discharge Type: Flange
• External Shaft Length: 2.14 in.
• Cylinders: 2
• Bore: 2.5 in
• Stroke: 1.6875 in
• Displ @1250 RPM: 12 CFM
• Max RPM: 3000 WC / 2400 AC
• Coolant Flow: 2.5 gpm
• Air Flow Req: 250 CFM
• HP @1250: 2.3 HP
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Unload Pressure: 60 PSI
• Oil Press Idle: 5 PSI
• Oil Press Max: 15 PSI
• Oil Cap: 0.53 qt
• Discharge Line: 5/8 in OD
• Coolant Line: 1/2 in OD
• Oil Supply: 1/4 in OD
• Oil Return: 5/8 in OD
• Air Inlet: 5/8 in ID
Applications:
Designed for Ford-style side mount configurations where a TF-500 compressor is required. Commonly used in commercial trucks and trailers requiring right-side port orientation and water-cooled pulley drive operation.
CROSS-REFERENCE(S):
228366, 227320TP, BX227320X, 745227320, 04625227320X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Core return is required when purchasing remanufactured units
✔ Flange nut torque should be 80–100 ft-lbs per OEM guidelines
✔ Installation must follow exact port orientation and OEM torque sequence
✔ Compatible only with Ford-style side mount compressor brackets
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
