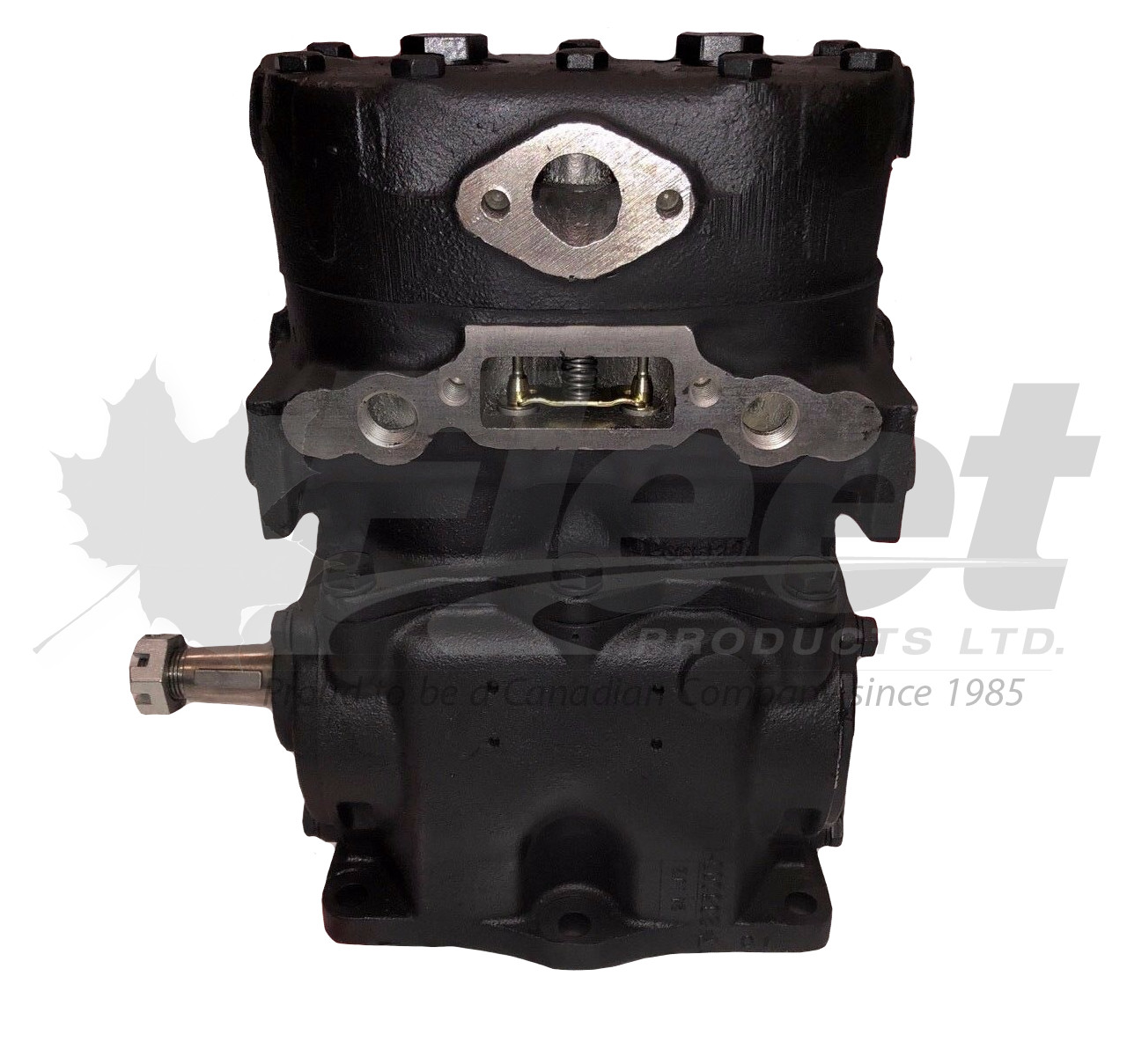

228139X - TF-500 PULLEY DRIVE AIR BRAKE COMPRESSOR – REMANUFACTURED
PART NUMBER(S):
Fleet Products: 228139X (Remanufactured) | Replaces OE: Bendix: 228139, 227321, 227320TP, 226282, 227544, 227675, 228359, 228360, 228369, 229164, 282824
DESCRIPTION:
Model: Bendix Tu-Flo 500 (TF-500) Pulley Drive Air Brake Compressor
Vehicles: Commercial trucks, 18 wheelers, and fleet-class vehicle applications requiring TF-500 pulley-mounted air systems
• Cooling: Water cooled
• Drive Type: Pulley drive, belt driven
• Mounting: 4-hole base
• Air Inlet Location: Right, viewed from rear
• Air Outlet Location: Right, viewed from rear
• Discharge Type: Flange
• External Shaft Length: 2.14 in
• No. of Cylinders: 2
• Bore: 2.5 in
• Stroke: 1.6875 in
• Displacement @ 1250 RPM: 12 CFM
• Max RPM: 3000 water cooled / 2400 air cooled
• Coolant Flow: 2.5 GPM
• Air Flow Requirement: 250 CFM
• HP @ 1250 RPM: 2.3 HP
• Temperature Range: 250°F inlet / 400°F discharge
• Unload Pressure: 60 PSI
• Oil Pressure: 5 PSI idle / 15 PSI maximum
• Oil Capacity: 0.53 qt
• Line Sizes: 5/8 in OD discharge, 1/2 in OD coolant, 1/4 in OD oil supply, 5/8 in OD oil return, 5/8 in ID air inlet
Applications:
Used on water-cooled TF-500 pulley-driven air brake systems requiring a 4-hole base mount, right-side inlet/outlet orientation, external shaft, and flange discharge configuration. The compressor supplies air for service brake and auxiliary pneumatic systems and is typically replaced due to reduced air output, oil carryover, overheating, or internal wear.
CROSS-REFERENCE(S):
BX227320X, 745227320, 04625227320X
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm right-side inlet and outlet port orientation before installation
✔ Verify 4-hole base mounting, pulley drive alignment, external shaft length, and flange discharge configuration
✔ Align flange with OEM mounting specifications before tightening
✔ Typical flange nut torque is 80–100 ft-lb
✔ Follow OEM port, water cooling, and oil feed orientation during installation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
