Description

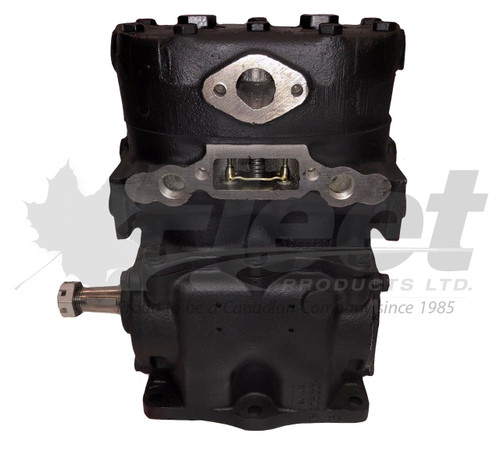

228346X – TF-500 PULLEY DRIVE COMPRESSOR
PART NUMBER(S):
Fleet Products: 228346X | OE: OR228346, TF-500, E-BN228346X, BX228346, 227346, P069811R, R955228346X
DESCRIPTION:
Model: TF-500 Pulley Drive Air Brake Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Cooling: Air cooled, Left side ports (Viewed from rear)
• External Shaft Length: 2.14 in.
• Cylinders: 2
• Bore: 2.5 in
• Stroke: 1.6875 in
• Displ @1250 RPM: 12 CFM
• Max RPM: 3000 WC / 2400 AC
• Coolant Flow: 2.5 gpm
• Air Flow Req: 250 CFM
• HP @1250: 2.3 HP
• Max Inlet Temp: 250°F
• Max Discharge Temp: 400°F
• Unload Pressure: 60 PSI
• Oil Press Idle: 5 PSI
• Oil Press Max: 15 PSI
• Oil Cap: 0.53 qt
• Discharge Line: 5/8 in OD
• Coolant Line: 1/2 in OD
• Oil Supply: 1/4 in OD
• Oil Return: 5/8 in OD
• Air Inlet: 5/8 in ID
CROSS-REFERENCE(S):
228346X, OR228346, TF-500, E-BN228346X, BX228346, 227346, P069811R, R955228346X
Cross-references indicate that these parts are interchangeable. Please confirm that port sizes and specifications match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Ensure proper alignment of pulley drive
✔ Mounting requires correct flange installation
✔ Use new gaskets and seals during installation to prevent leaks
✔ Core return required for remanufactured units
✔ Verify compatibility with your air brake system before installation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?
• Canadian-owned since 1985
• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee | Find a better price? We'll beat the difference by 10%!
