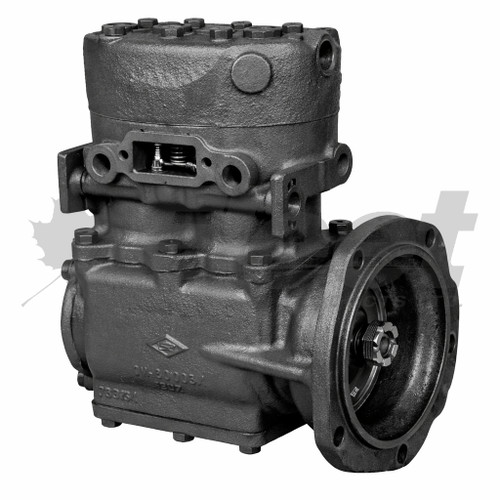

TF-700 DETROIT COMPRESSOR 75° TILT REMANUFACTURED
PART NUMBER(S):
Fleet Products: 106268X (Remanufactured) | Replaces OE: Bendix: 106268, 106268X, BNE289925, 106780X, 106265, 106287, 106381, 106780
DESCRIPTION:
Model: Bendix Tu-Flo 700 Detroit Air Brake Compressor
Vehicles: Detroit Diesel engine applications with 75° tilt configuration
• Air inlet location: Right
• Head rotation: Left
• Block rotation: Left
• Air outlet location: Left or top
• Mounting: 75° tilt engine-specific configuration
• Cylinders: 2
• Bore × Stroke: 2.75 in × 1.81 in
• Rated displacement: 15.5 CFM @ 1250 RPM
• Maximum speed: 3000 RPM
• Minimum coolant flow: 2.5 GPM
• Minimum unload pressure: 60 PSI
• Maximum inlet temperature: 250°F
• Maximum discharge temperature: 400°F
• Discharge line: 5/8 in OD copper
• Oil return line: 5/8 in OD
• Oil supply line: 1/4 in OD
• Unloader line: 1/4 in OD
• Coolant line: 1/2 in OD
Applications:
Designed for Detroit Diesel engine applications requiring a Bendix Tu-Flo 700 air brake compressor with 75° tilt mounting, left head rotation, and left block rotation. Supplies compressed air for heavy-duty air brake systems using the original Detroit mounting and port configuration.
CROSS-REFERENCE(S):
106268, 106268X, BNE289925, 106780X, 106265, 106287, 106381, 106780, 75 TILT, HVG289925X, BWX289925X, BXX289925X, 175289925X, BWR289925, E-BN289925X, ZZ289925X, H289925X, 745X289925, EL16050
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Verify 75° tilt mounting configuration before installation
✔ Confirm left head rotation and left block rotation match the original compressor
✔ Confirm right-side air inlet and left or top discharge orientation before installation
✔ Replace all mounting gaskets and seals during installation
✔ Ensure coolant, oil, and air passages are clean and unrestricted
✔ Prime the compressor with clean engine oil before initial startup
✔ Check for air, oil, and coolant leaks after the system reaches operating pressure
✔ Torque all mounting hardware and fittings to OEM specifications
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
