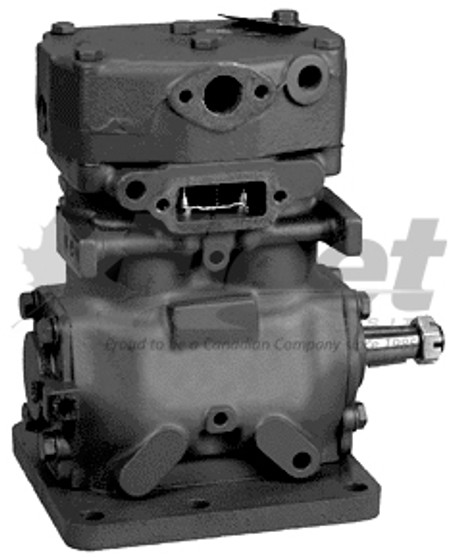

102989X – TF-501 PULLEY DRIVE COMPRESSOR
PART NUMBER(S):
Fleet Products: 102989X (Remanufactured) | OE: 102989, 286578BXR, 745286578X
DESCRIPTION:
Model: TF-501 Pulley Drive (6-Hole Wide Base)
Vehicles: Compatible Ford and general heavy-duty platforms with base-mounted TF-501 systems
• Mounting: 6-Hole Wide Base
• Drive Type: Pulley Drive
• Cooling: Water/Air Cooled
• Air Inlet: Right (viewed from rear)
• Air Outlet: Right (viewed from rear)
• Discharge Type: Flange
• Rated Displacement: 12 CFM @ 1250 RPM
• Weight: Approx. 40 lbs
Applications:
Used in Ford and other heavy-duty truck applications requiring a TF-501 pulley-driven, base-mount compressor. Designed for air brake systems where both inlet and outlet are right-side facing with flange discharge. Confirm base hole spacing and port orientation during install.
CROSS-REFERENCE(S):
102989, 286578BXR, 272CC, 745286578X, 285924A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is right-side for both inlet and outlet (viewed from rear)
✔ Mounts using 6-hole wide base pattern
✔ Rated 12 CFM @ 1250 RPM
✔ Typical flange nut torque: 80–100 ft-lbs
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
