Description

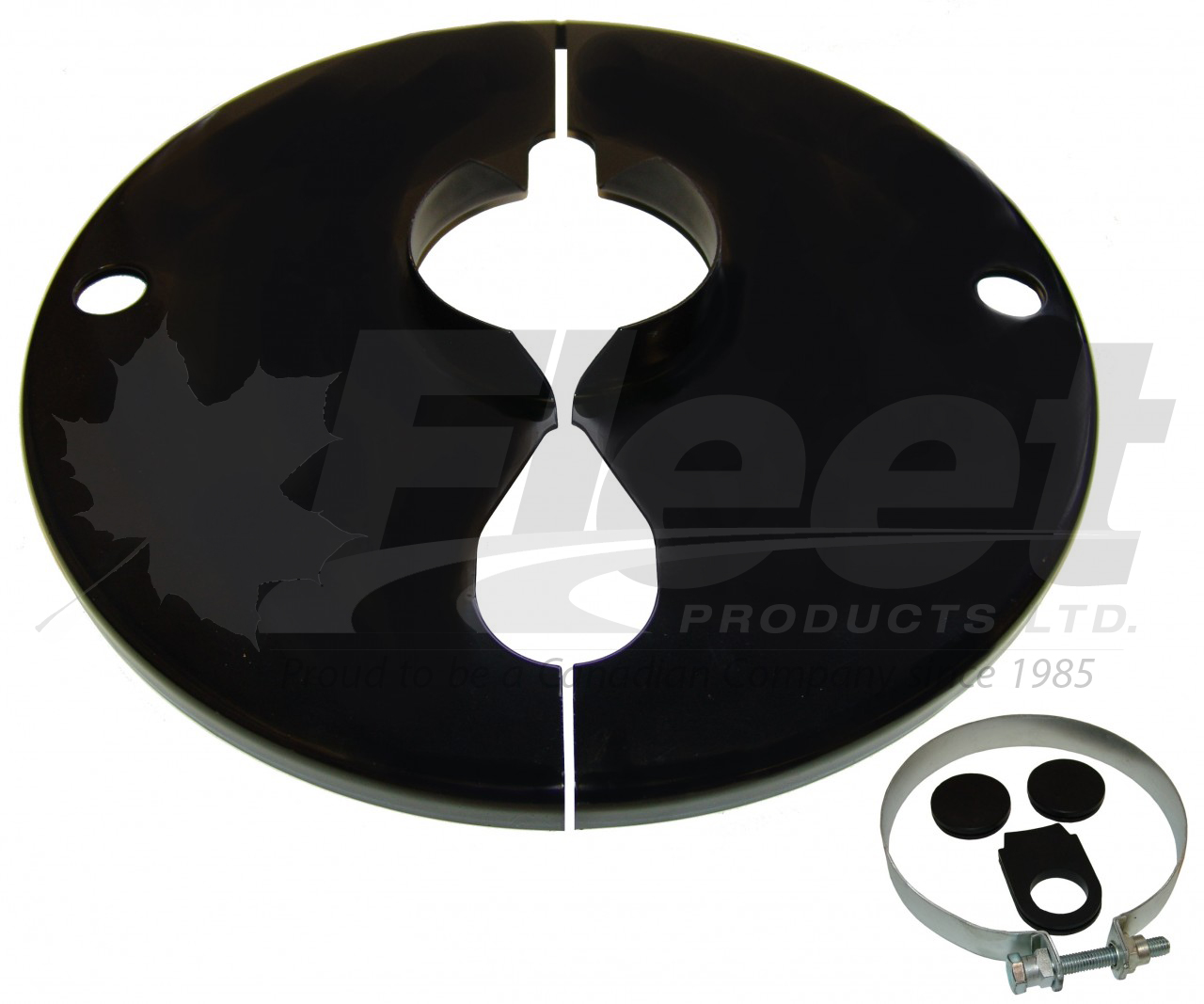

DUST SHIELD W/CLAMP KIT (5.75" AXLE)
PART NUMBER(S):
Fleet Products: RA603 (New) | OE: Automann 156.1007, HENS-28500-1657 | Euclid E-14924 | Hendrickson Trailer S-28500-1657, S285001657
DESCRIPTION:
Model: Clamp-On Dust Shield Kit – 5.75" Axle
Vehicles: Compatible with trailer axles using 5.75" round axle tubes
• Application: Hendrickson trailer axle (16.5" brakes)
• Axle Fitment: 5.75" round axle
• Outer Diameter: 18.250"
• Inner Diameter: 5.875"
• Height (Depth): 2.000"
• Material: 13-gauge cold-rolled steel
• Mounting: clamp-on (external to axle tube)
• Finish: zinc-plated
• Includes: dust shield, stainless clamp band, hardware
• Function: protects brake components from debris and contamination
Applications:
RA603 is a clamp-on style mechanical dust shield engineered for trailers with 5.75" diameters. it mounts externally to the axle tube and protects brake areas from road grime and debris. Ideal for extending component life and reducing brake service frequency in severe-duty trailer applications.
CROSS-REFERENCE(S):
RA603, RA603K, E-14924, E14924, S-28500-1657, RIA-RA603, HENS-28570-4357, 052-1561007, 1561007, HDR S 28500 1657, HENS-28500-1657, HENS285001657, 8446-S285001657, 8446S285001657, HTTSS285001657, HTS-28500-1657, S285001657
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Clamp-on design—no axle or brake disassembly required
✔ Secure around axle using included stainless-steel clamp band
✔ Ensure shield is centered and clear of all rotating brake components
✔ Check periodically for corrosion, movement, or fastener loosening
✔ RA603 includes both shield and clamp kit (RA603K is clamp kit only)
