Product Description

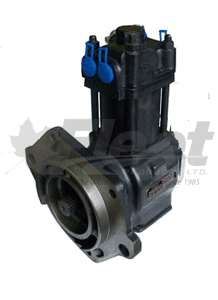

P6471X - CLAYTON SC-6 AIR COMPRESSOR
PART NUMBER(S):
Fleet Products: P6471X (Remanufactured) | OE: P6471
DESCRIPTION:
Model: Clayton SC-6
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Application: Air brake compressor for the actuation of air brakes
• Air Inlet/Outlet Port Size: 3/8"-18 NPT
• Head: Water cooled or air cooled (varies by component)
• Oil Pump Stroke: 6.35 mm (0.25 in.)
• Oil Pump Relief Pressure: 0.7–1.0 kg/cm² at 500 RPM
• Test Reservoir Volume: 40 litres (for bench testing at 5.5 kg/cm²)
• Oil Level: Indicator dipstick incorporated
• Cooling: Water-cooled (standard)
• Function: Pressurizes air for the actuation of air brakes
Applications:
The Clayton SC-6 Air Compressor is used in heavy trucks, semi trucks, 18 wheelers, and commercial trucks. It features a 3/8"-18 NPT air inlet/outlet and is designed to pressurize air for the actuation of air brake systems. Available in both water-cooled and air-cooled versions, depending on the configuration.
CROSS-REFERENCE(S):
P6471
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Core return required for remanufactured units
✔ Oil pump relief pressure set between 0.7–1.0 kg/cm² at 500 RPM
✔ Oil level indicator dipstick included; fill as per dipstick cap
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
