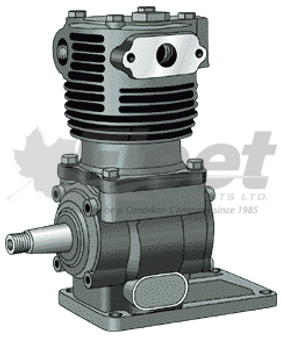

KN86020X – EL850 PULLEY DRIVE COMPRESSOR
PART NUMBER(S):
Fleet Products: KN86020X (Remanufactured) | Haldex: EL86020, EL86020X
DESCRIPTION:
Model: EL850 Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Mounting Type: 4-Hole Base Mount
• Drive Type: Pulley/Belt Driven
• Cooling: Water or Air Cooled
• Intake Manifold Position: Right
• Discharge Type: Front-Threaded
• Oil Feed: Base Oil
• Oil Drain: Base Oil
• Cylinders: 1
• Bore x Stroke: 3.15 in × 1.50 in
• Rated Displacement: 8.5 CFM @ 1250 RPM
• Maximum Turbo Pressure: 25 PSI
• Cooling: Air or water cooled
• Design: Compact single-cylinder configuration
• Function: Pressurizes air for air brake actuation
• OEM Part Number: N7602 (Exact Replacement)
• External Shaft Length: 2.22 in.
Applications:
The KN86020X – EL850 Pulley Drive Compressor is engineered for use in air brake systems in heavy-duty trucks, buses, and trailers. It features a 4-hole base mount and a pulley-driven design, ensuring reliable pressurization for air brake systems in demanding applications. This compressor is compatible with a range of vehicle configurations, including semi-trucks, 18-wheelers, and other commercial vehicles.
CROSS-REFERENCE(S):
KN86020, EL86020, KN86020T, ZZKN86020X, ZZKN86020, EMDKN86020X, N7602
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Inspect pulley alignment, belt condition, and mounting surface before startup
✔ Confirm compressor configuration against the original unit before installation
✔ Torque the nut to 80-100 ft. lbs. for proper installation.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
