Description

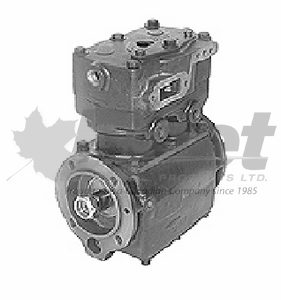

EL1600 CUMMINS COMPRESSOR REMANUFACTURED
PART NUMBER(S):
Fleet Products: KN16040X (Remanufactured) | Replaces OE: Midland: EL16040, NT7204 | Cummins: 184108, 185350, 185393, 186506, 186507, 203202, 209666, 213556, 3016642, 3067469, 3069181, 3074471, 3251987, Y211877, Y211879 | International: 417256C91, 503191C91, 513983C91 | Paccar: 289300, 0165198BXW | Volvo: 27010640, 270101850, 3103057, 49045315
DESCRIPTION:
Model: EL1600 Cummins Compressor
Vehicles: Cummins in-line engine applications in heavy trucks, semi trucks, 18 wheelers, and commercial vehicles
• Compressor type: Two-cylinder air brake compressor
• Mounting: Flange mount
• Drive type: Gear drive
• Head rotation: Right
• Block rotation: Right
• Cooling: Water cooled
• Bore x stroke: 2.75 in x 1.87 in
• Rated displacement: 16.1 CFM at 1250 RPM
• Maximum turbo pressure: 35 PSI
• Overall height: 12.57 in.
• Overall width: 5.68 in.
• Overall length: 9.09 in.
• External shaft length: 0.54 in.
• Identification: Distinctive tab on block
Applications: The EL1600 Cummins compressor is used in Cummins in-line engine applications requiring a gear-driven, flange-mounted compressor for air brake actuation. It is suited for heavy trucks, semi trucks, 18 wheelers, and commercial vehicles where the original compressor uses the EL1600 high-capacity configuration. Verify mounting, drive setup, oil feed, oil drain, and port orientation before installation.
CROSS-REFERENCE(S):
3251987, 3251987RX, 213556, 3067469, 3067469RX, 107001, 184108, 280222, 280238, 280310, 280392, 280393, 280428, 280429, 280447, 280477, 1672564C91, 1672564C92, 280579, 280589, 280622, 280626, 280629, 3401053, 281079, 1694007C91, 185393, 107507, 107507X, 3820509, 107683, 107781, 107819, 107820, 3016642, 3016642RX, 3069181, 3069181RX, 3074471, 3074471RX, 280514, 283345, 283994, 284018, 284257, 284259, 284714, 284719, 284720, 284855, 284913, 284914, 284915, 284916, 285393, 285479, 285521, 288686, 108584, 289300, 289301, 289339, 289346, 109198, 700010023, 700010028, 5001711, 66990, 102966, 065198, KN16040, KN16040N, KNT16040, KNT16040N, KNT16040T, KNT16040X, KNX16040, KTX16040C, EL16040, EL16040X, EL16404, ZZEL16040, ZZEL16040X, EMDEL16040X, N7204, N7204A, N7204B, N7204F, NT7204, NT7204D, NT7204E, 102042, 107507BXR, 185350, 186506, 186507, 203202, 209666, 27010640, 27101850, BWEL16040X, BXEL16040X, 04625EL16040X
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Ensure correct compressor alignment during installation
✔ Verify compatibility with Cummins in-line engine systems
✔ Confirm flange mount and gear drive configuration before installation
✔ Follow installation requirements for oil feed and oil drain systems
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
