Description

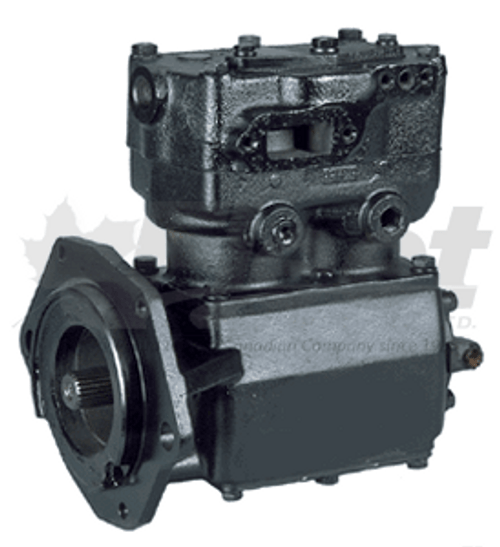

KN13300X – EL1300 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: KN13300X | OE: KN13301, NT7030, EL13301, 1440744, KN13151, EL13151, EL13151XBXR, KN13151N
DESCRIPTION:
Model: EL1300 CAT Compressor
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks
• Head Rotation: Right
• Block Rotation: Right
• Application: Caterpillar 3176B Engines, Spline Shaft
• Mounting: Flange mount
• Drive: Gear drive, spline shaft
• Discharge Type: Top/flange discharge
• Oil Feed: End cap oil feed
• Oil Drain: Flange oil drain
• Head/Flange: Rotatable
• Cooling: Water cooled
• Turbo chargeable: Yes
• OEM Part Number: NT7030 (exact replacement)
• Rated Displacement: 13.0 CFM @ 1250 RPM
• Bore Diameter: 2.75 in.
• Stroke: 1.50 in.
• Approximate Weight: 45 lbs
Applications:
The KN13300X EL1300 CAT compressor is designed for Caterpillar 3176B engines, used to pressurize air for the actuation of air brakes in heavy-duty trucks, semi trucks, 18-wheelers, commercial trucks, and buses.
CROSS-REFERENCE(S):
KN13301, EL13301, KN13151, EL13151, EL13151XBXR, KN13151N, NT7030
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Remanufactured to OEM standards; thoroughly cleaned, inspected, and tested for durability and performance
✔ Core return required for remanufactured units
✔ Turbochargeable for enhanced air supply systems
✔ Suitable for Caterpillar 3176B engines with flange-mount configurations
✔ Head is rotatable for flexible manifold orientation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
