Product Description

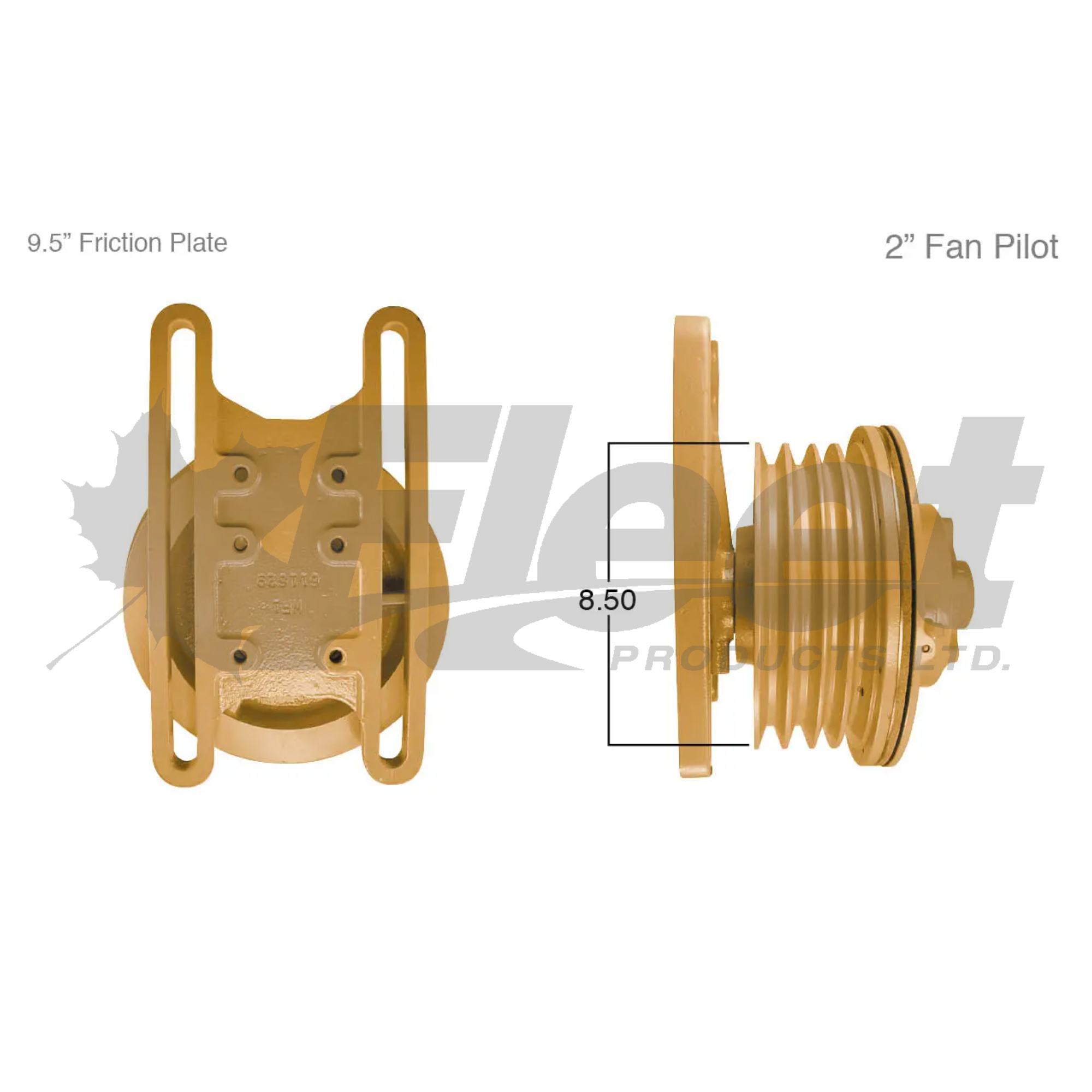

KB791116X - HT/S ADVANTAGE FAN CLUTCH (4V, 8.5" PULLEY, 2" FAN PILOT, 9.5" FRICTION PLATE)
PART NUMBER(S):
Fleet Products: KB791116X (Remanufactured) | OE: 791116, 91116, 20042A
DESCRIPTION:
Model: HT/S Advantage On/Off Pneumatic Fan Clutch
Vehicles: Heavy-duty truck and trailer applications
• Belt Groove: 4V belt
• Pulley Diameter: 8.5"
• Fan Pilot Diameter: 2"
• Friction Plate: 9.5"
• Engagement Type: Air-engaged, piston friction disc
• Bearing Design: Advanced sealed hub, fine spline bearing
• Drive Type: Pneumatic air engaged (On/Off)
Applications: Is this fan clutch compatible with your heavy-duty diesel-powered truck or vocational fleet vehicle? Yes—engineered for Kenworth trucks with Caterpillar C15, C16, and 3406 engines, as well as Mack trucks with Caterpillar 3406 engines, this HT/S Advantage unit delivers long-life reliability, drop-in OEM fitment, and robust performance under continuous load cycles.
CROSS-REFERENCE(S):
KB791116X, 791116, 981019, 981067, 981266, 987068, 991079, 991256, 997078, 91116, 20042A, 38MH419, ABP N20 91116, ABPN2091116, KM N20 91116, KMN2091116, FLT91116, KMI91116, 3443-91116, HOR791116, KM91116, 790005
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Remove the existing fan clutch and clean the air chamber before installation.
✔ Inspect or replace the air cartridge and seals as needed.
✔ Torque fan blade mounting bolts (3/8-16 thread) to 22–25 ft-lbs.
✔ Torque button head cap screws on friction plate to 35–40 in-lbs (4.0–4.5 Nm).
✔ Torque hub lock nut to approx. 150 ft-lbs (203 Nm).
✔ Ensure clean mounting surfaces and verify air engagement system operation.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
