Description
KB791073X - HT/S ADVANTAGE FAN CLUTCH (VOLVO/CUMMINS ISX, N14, VE D12)
PART NUMBER(S):
Fleet Products: KB791073X (Remanufactured) | OE: Horton 791073, Volvo part number 85108783 Replaces Volvo 20353628, 3164795
DESCRIPTION:
Model: HT/S Advantage On/Off Fan Clutch
Vehicles: Volvo VN with Cummins ISX, N14, and Volvo VE D12 engines

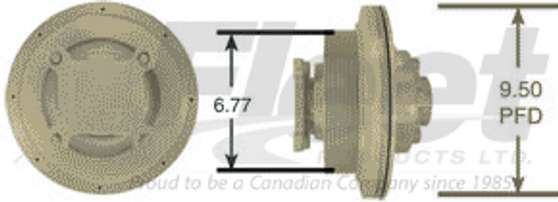

• Pulley Diameter: 6.77″
• Belt Type: 10PK serpentine
• Belt Groove Count: 10
• Belt Count: 1
• Fan Pilot Diameter: 2.56″
• Bolt Circle: 3.5″
• Fan Blade Stud Length: 6x, 3/8-24 Thread, 1.07″ Long
• Friction Plate: 9.5″
• Vertical Mounting Distance: 3.27"
• Horizontal Mounting Distance: 3.63"
• Engagement Type: Pneumatic On/Off, air-engaged
• Bearing/Seal: Advanced hub bearing, HNBR seals, long-life air cartridge
Applications:
Is this fan clutch compatible with your Volvo VN powered by Cummins ISX, N14, or VE D12✔ Yes—engineered for 1998–2001 models, this HT/S Advantage delivers OEM-fit performance, extended service life, and reliable cooling under demanding fleet conditions.
CROSS-REFERENCE(S):
20353628, 3164795, 3443-91073, 3912-791073, 3912791073, 791073, 791073-HO, 791073HO, 791073RMAN, 85108783, 91073, 987018, 987035, 997028, 997045, ABP N20 91073, ABPN2091073, FLT91073, HOR 791073, HOR791073, KM N20 91073, KMI91073, RF791073X, ZBH791073, HOR981340, KM91073, KB791073, KB791073X, 791073HTS, 99025, KMN2091073A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Verify pulley diameter, belt configuration, and mounting dimensions before installation
✔ Install with new hardware and torque to OEM specifications
✔ Confirm pneumatic engagement (90–120 psi) before operating vehicle
✔ Inspect fan blade, hub, and air system components for wear before mounting
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
