Description

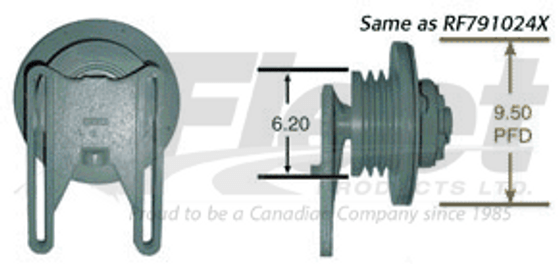

KB791065X - HT/S ADVANTAGE FAN CLUTCH (DETROIT DIESEL SERIES 60)
PART NUMBER(S):
Fleet Products: KB791065X (Remanufactured) KB791024X | OE: 791065, 91065, 91024
DESCRIPTION:
Model: HT/S Advantage On/Off Pneumatic Fan Clutch
Vehicles: Freightliner, Kenworth, Sterling, Volvo with Detroit Diesel Series 60 engines (1991–2004)
• Belt Count: 3
• Belt Groove Count: 1
• Belt Groove Type: V
• Belt Type: 3V
• Pulley Diameter: 6"
• Fan Pilot Diameter: 2"
• Fan Blade Bolt Circle: 3.5"
• Fan Blade Stud Length: 6x, 3/8-16 Thread, 2.12" Long
• Friction Plate: 9.5"
• Clutch Type: On/Off
• Weight: 43 lbs
Applications: Is this fan clutch compatible with your Detroit Diesel Series 60-powered truck✔ Yes—built for Freightliner Aero, Classic, and Classic XL, as well as Kenworth, Sterling, and Volvo models, this HT/S Advantage delivers OEM fit, durable cooling performance, and long service life under demanding conditions.
CROSS-REFERENCE(S):
991349, KB791065, RF791065X, 791065, 791024, 981050, 981143, 981147, 981176, 981324, 991113, 991127, 991324, 91065, 991064, 591024, 991149, 981120, 981342, 981224, 981104, 981146, 91024, 981061, KMN2091024, KM N20 91024, ABPN2091024, ABP N20 91024, FLT91024, RX791024RMANRF, RX791024RMAN, RX791065RMAN, KMI91024, 3443-91024, KMN2091065, KM N20 91065, ABPN2091065, ABP N20 91065, 1000-791065, 1000791065, ABP N20 91065, ABPN2091065, FC791065, FLT91065, HOR791065, HT791065, RC 791065, RC791065, ZBH791065, ZBH991349A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Clean and lubricate splines with anti-seize before installation.
✔ Torque lock nut (pulley to hub) to 150 ft-lb (203 Nm).
✔ Tighten button head cap screws to 35–40 in-lb (4–4.5 Nm).
✔ Verify 90–120 psi air inlet pressure for proper engagement testing.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?
• Canadian-owned since 1985• Trusted by fleets, mechanics, and B2B partners across North America
• Fast, Reliable Shipping Across North America
• Competitive pricing with Core Return Refunds
• Price Match Guarantee | Find a better price? We'll beat the difference by 10%!
Warranty Information
