KB791056X - HT/S ADVANTAGE FAN CLUTCH (NAVISTAR/CUMMINS N14)
PART NUMBER(S):
Fleet Products: KB791056X (Remanufactured) | OE: 791056, 981276, 991265
DESCRIPTION:
Model: HT/S Advantage
Vehicles: International 9200, 9400, 9900, 9100 (1996–1999) with Cummins N14 engines
• Clutch Type: On/Off Pneumatic, Air-engaged
• Belt Groove: 10K
• Fan Pilot Diameter: 5.00"

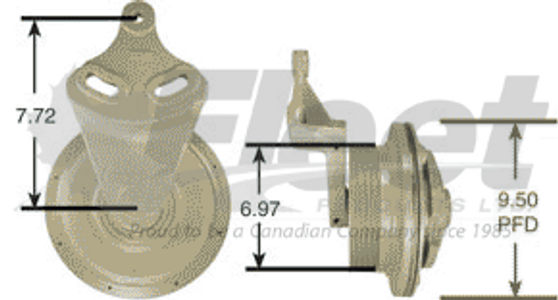

• Pulley Diameter: 6.97" , Vertical Mounts: 7.72"
• Friction Plate: 9.5"
• Bolt Circle: 6-bolt standard HT/S
• Spline Count/Type: Fine spline, high-temp bearing
• Bearing Design: Advanced hub bearing with extended-life air cartridge and HNBR seals
Applications: Is this HT/S Advantage fan clutch compatible with your Cummins N14-powered International✔ Yes—engineered for models like 9200, 9400, 9900, and 9100 from 1996–1999, this remanufactured unit delivers long service life, premium friction liner, and drop-in OEM fitment
CROSS-REFERENCE(S):
1000-791056, 1000791056, 3501272C91, 3912-791056, 3912791056, 791056, 791056-HO, 791056HO, 91056, 981276, 991265, ABP N20 91056, ABPN2091056, FC791056, HOR 791056, HOR791056, HT791056, K5 91056, K591056, K791056, RC 791056, RC791056, RF791056X, ZBH791056, 981276, 991265, 3501272C91, 791056, KMN2091056, KM N20 91056, ABPN2091056, ABP N20 91056, FLT91056, KMI91056, 3443-91056,A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Lock nut (pulley to hub) torque: 150 ft-lb (203 Nm)
✔ Button head cap screws torque: 35–40 in-lb (4–4.5 Nm)
✔ Air chamber cap screws torque: 180 in-lb (20.3 Nm)
✔ Clean and lubricate splines with anti-seize before assembly
✔ Align lockup holes before torquing
✔ Verify 90–120 psi air inlet pressure for engagement check
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
