Description
KB791044X – HT/S ADVANTAGE FAN CLUTCH (INTERNATIONAL / CUMMINS ISM)
PART NUMBER(S):
Fleet Products: KB791044X (Remanufactured) | OE: 791044, 2026018C91, 3532242C91
DESCRIPTION:
Model: HT/S Advantage
Vehicles: International 9200, 9400, 9800, 9900, 9100 (1998–2000) – Cummins ISM engines
• Clutch Type: On/Off Pneumatic, Air-engaged
• Belt Count: 1
• Belt Type: 8PK
• Belt Groove Location: 5.55"
• Fan Pilot Diameter: 2.56"
• Bolt Circle: 3.5" (6x, 3/8-16 Thread, 0.78" Long)

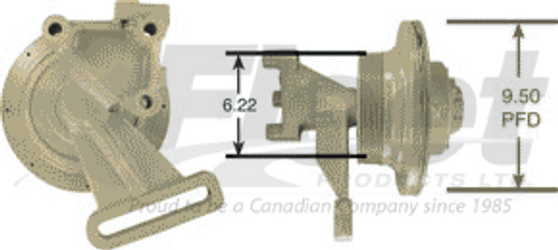

• Back Pulley Diameter: 6.22"
• Vertical Mounting Distance: 2.76"
• Horizontal Mounting Distance: 3.58"
• Overall Length: 10.36"
• Friction Plate: 9.5"
• Advanced hub bearing with long-life air cartridge and HNBR seals
• Designed for high torque, extended life performance in on-highway vocational applications
Applications:
Is this fan clutch compatible with your Cummins ISM-powered International truck✔ Yes—engineered for models like the 9200, 9400, 9800, 9900, and 9100 (1998–2000), this HT/S Advantage delivers OEM fitment and dependable cooling engagement for Cummins ISM engines.
CROSS-REFERENCE(S):
1688093C91, 1691185C91, 2026018C91, 3443-91044, 3532242C91, 3912-791044, 3912791044, 791044, 791044-HO, 791044HO, 91044, 987037, 997047, ABP N20 91044, ABPN2091044, FLT91044, HOR 791044, HOR791044, HT791044, KM N20 91044, KMI91044, RF791044X, ZBH791044, KB791044, 991086, KM91044, 791030, KMN2091044, KM N20 91044A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque lock nut (pulley to hub) to 150 ft-lb (203 Nm).
✔ Torque button head cap screws to 35–40 in-lb (4–4.5 Nm).
✔ Torque air chamber cap screws to 180 in-lb (20.3 Nm).
✔ Clean and lubricate splines with anti-seize before installation.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
