KB791042X - HT/S ADVANTAGE FAN CLUTCH (INTERNATIONAL DT466)
PART NUMBER(S):
Fleet Products: KB791042X (Remanufactured) | OE: 2028304C91, 91042, 987010, 997020
DESCRIPTION:
Model: HT/S Advantage
Vehicles: International 8100, 2000, 2500, 2600, 5000 Series (1994–1999)
• Clutch Type: On/Off Pneumatic
• Belt Configuration: 6PK, 8PK (2 belts)

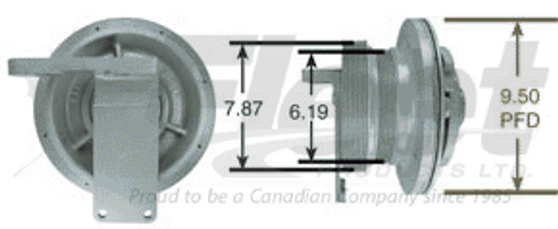

• Front Pulley Diameter: 6.19"
• Back Pulley Diameter: 7.87"
• Fan Pilot Diameter: 2.56"
• Bolt Circle: 3.5" (6x, 3/8-16 Thread, 0.78" Long)
• Belt Groove Location: 0.54"
• Friction Plate: 9.5"
• Engine Model: International DT466
• Advanced hub bearing with long-life air cartridge and HNBR seals
Applications: Is this fan clutch compatible with your DT466-powered International truck✔ Yes—engineered for models like the 8100, 2000, 2500, 2600, and 5000 Series (1994–1999), this HT/S Advantage delivers long service life, OEM-grade fitment, and consistent cooling performance.
CROSS-REFERENCE(S):
2028304C91, 91042, 987010, 997020, 791042, 981122, KMN2091042, KM N20 91042, ABPN2091042, ABP N20 91042, FLT91042, KMI91042, 3443-91042, ZBH791042, HOR791042, HOR987010, 791043, KB791042, RF791042X, 991086A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Torque lock nut (pulley to hub) to 150 ft-lb (203 Nm)
✔ Torque button head cap screws to 35–40 in-lb (4–4.5 Nm)
✔ Torque air chamber cap screws to 180 in-lb (20.3 Nm)
✔ Clean and lubricate splines with anti-seize before assembly
✔ Align lockup holes before torquing
✔ Verify 90–120 psi air inlet pressure for proper engagement
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
