Description
KB791031X - HT/S ADVANTAGE FAN CLUTCH (DETROIT DIESEL SERIES 60 / NAVISTAR)
PART NUMBER(S):
Fleet Products: KB791031X (Remanufactured) | OE: 791031, 1687828C91, 2000156C91
DESCRIPTION:
Model: HT/S Advantage
Vehicles: International, Link-Belt (Detroit Diesel Series 60)
• Clutch Type: On/Off, Air Engaged
• Belt Count: 2
• Belt Configuration: 6K, 10K

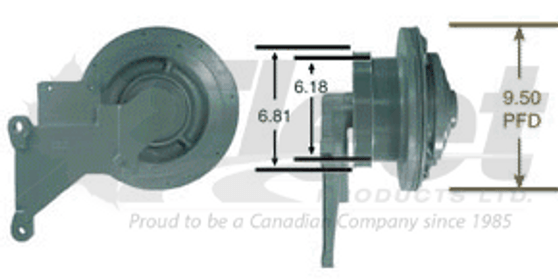

• Front Pulley Diameter: 6.18"
• Back Pulley Diameter: 6.81"
• Fan Pilot Diameter: 4.99"
• Fan Blade Bolt Circle: 6.00"
• Belt Groove Location: 1.96"
• Vertical Mounting Distance: 5.32"
• Horizontal Mounting Distance: 5.32"
• Overall Length: 6.6"
• Friction Plate: 9.5"
Applications:
Is this fan clutch compatible with your Detroit Diesel Series 60-powered International or Link-Belt application✔ Yes, engineered for models like International 9400, 9600, 9700, and Link-Belt crane units from 1991–2004, this HT/S Advantage delivers OEM-spec cooling performance and durability.
CROSS-REFERENCE(S):
991061, KB791031, RF791031X, 791031, 591031, 981047, 981059, 981227, 981228, 981317, 991221, KMN2091031, KM N20 91031, ABPN2091031, ABP N20 91031, FLT91031, KMI91031, 3443-91031, HOR791031, ZBH791031, 1691186C91, 20099A, F2A0046, 1687828C91, 2000156C91A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm both pulley diameters, pilot size, and belt configuration match before installation.
✔ Inspect mating components (bearings, belts, pulleys) for wear prior to fitment.
✔ Lubricate splines and align lockup holes during assembly.
✔ Torque all fasteners to OEM specifications for safe operation.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
