Description

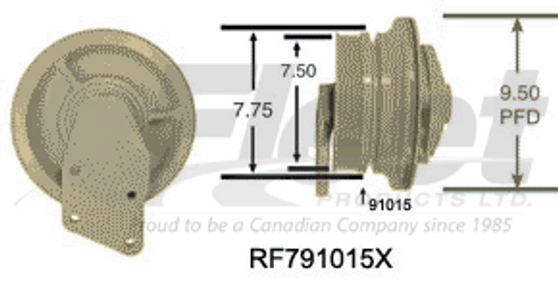

791015 – HT/S ADVANTAGE FAN CLUTCH (INTERNATIONAL/VOLVO CATERPILLAR 3176, C10, C12)
PART NUMBER(S):
Fleet Products: KB791015X (Remanufactured) | OE: 791015, 91015, 981005, 981153, 991023, 991157, 1661821C91, 20822-0166, 208220166
DESCRIPTION:
Model: HT/S Advantage
Vehicles: International 8000, 8100, 9100, 9200, 9400, 9900, Paystar 5000; Volvo heavy-duty models (1988–2000) with Caterpillar 3176, C10, C12 engines
• Clutch Type: Pneumatic On/Off
• Friction Plate: 9.5"
• Belt Configuration: 1V, 8PK (dual configuration)
• Belt Groove Count: 1, 8
• Belt Groove Location: 1.08"
• Belt Groove Type: V, PK
• Belt Count: 2
• Pulley Diameter: 7.50", 7.75"
• Fan Pilot Diameter: 5.00"
• Bolt Circle Diameter: 6.00"
• Bearing Design: Dual bearing hub assembly with advanced sealing
• Minimum Air Pressure Required: 90 psi
Applications:
Is this fan clutch compatible with your Caterpillar-powered International or Volvo✔ Yes—designed for models like 8000, 8100, 9200, 9400, 9900, and Paystar 5000 (1988–2000), plus select Volvo heavy-duty trucks, this HT/S Advantage reman delivers consistent cooling with drop-in OEM fitment for 3176, C10, and C12 engines.
CROSS-REFERENCE(S):
1000-791015, 1000791015, 1661821C91, 20822-0166, 208220166, 3443-91015, 3912-791015, 3912791015, 591015, 791015, 791015-HO, 791015HO, 91015, 981005, 981153, 991023, 991157, ABP N20 91015, ABPN2091015, FC791015, FLT91015, HOR 791015, HOR791015, HT791015, K791015, KM N20 91015, KMN2091015, KMI91015, RC 791015, RC791015, RF591015X, RF791015X, ZBH791015, HI591015, HR591015, NJ791015A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Always verify fan blade bolt pattern, mounting clearance, and pulley alignment before installation.
✔ Confirm fan clutch engagement after installation under full engine operating temperature.
✔ Ensure minimum air pressure of 90 psi for proper engagement.
✔ Replace or inspect related bearings when installing a remanufactured fan clutch to ensure optimal service life.
HTS Advantage Repair Kits:
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
