Product Description
KB790014X - S ADVANTAGE REMAN FAN CLUTCH (CATERPILLAR 3176)
PART NUMBER(S):
Fleet Products: KB790014X (Remanufactured) | OE: 790014 HORTON, 05-11369-030 PETERBILT, 1093-07771-09 BORG WARNER, 20822-0174 VOLVO, 015-11369-030 PETERBILT
DESCRIPTION:
Model: S Advantage
Vehicles: Kenworth, Peterbilt, Volvo (Caterpillar 3176, 1988–1993)
• Clutch Type: On/Off, Air-Actuated
• Model Family: S-Type

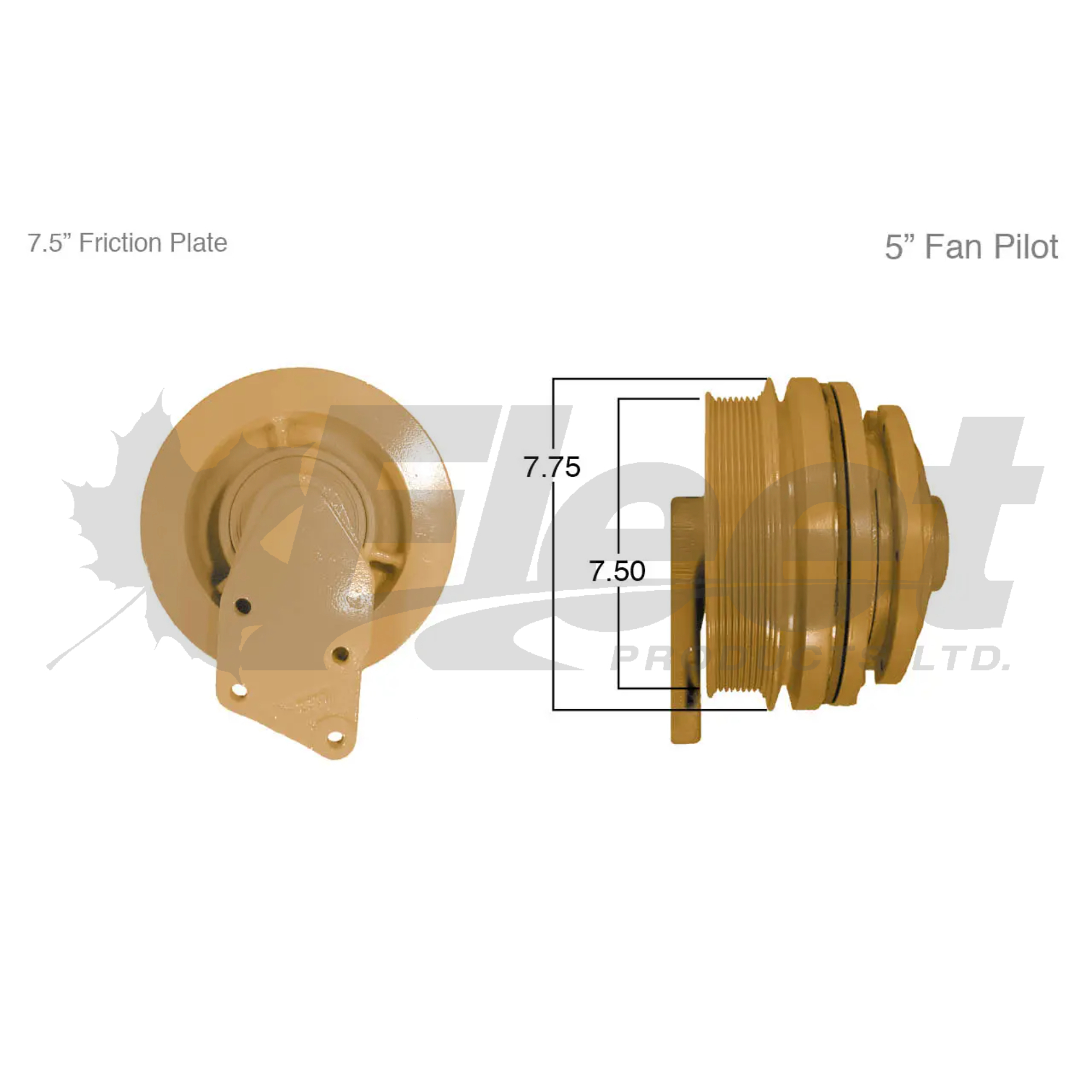

• Fan Pilot Diameter: 5.00″
• Back Pulley Diameter: 7.50″
• Front Pulley Diameter: 7.75″
• Overall Length: 5.21″
• Belt Configuration: 8K, 1V
• Belt Groove Location: 1.08″
• Bolt Circle: 6.00″
• Fan Blade Stud Length: 1.05″
• Stud Thread Size: .312-18
• Vertical Mounting Distance: 2.00″
• Horizontal Mounting Distance: 2.32″
Applications:
Is this the right fan clutch for your rig? If you're running a Kenworth, Peterbilt, or Volvo equipped with a Caterpillar 3176 engine (model years 1988–1993), this remanufactured Horton S Advantage clutch is a precise replacement. Ensure belt layout and mounting specs match before install.
CROSS-REFERENCE(S):
980070, 980023, 980014, 980067, 1511369030, 015-11369-030, 980036, 990098, 590014, 990081, 990089, 990132, 990129, KMN2090014, KM N20 90014, ABPN2090014, ABP N20 90014, FLT90014, KMI90014, 3443-90014, 79A0014, 90014, 98A0014, 99A0014, FC790014, 1093-07771-09, 1077-07770-09, 20822-0174, 20078A, 0511369030, FLT91014, RF791014X, S-H003357, HI791014, 981064, 981110, 981148, 981349, 981362, 981363, 991076, 991119, 991152, 991356, 991372, 991373, 791014RMAN, 791014X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Verify mounting flange pattern and fan pilot diameter prior to install
✔ Ensure Caterpillar 3176 belt routing is compatible with 8K, 1V pulley spec
✔ Inspect pulley and clutch alignment to avoid premature wear
✔ Use OEM torque values and follow vehicle-specific installation procedure
S Advantage Repair Kits:
SOLD AS REMANUFACTURED – CORE RETURN REQUIRED
Built to OEM standards — thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
