Product Description

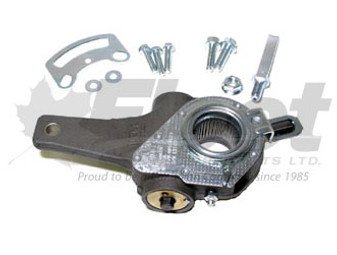

MANUAL SLACK ADJUSTER – 37 SPLINE, 6" ARM
PART NUMBER(S):
Fleet Products: FP44041 | OE: 44041, KN44041, R822007 | Euclid: E1574HD
DESCRIPTION:
Model: Manual Slack Adjuster
Vehicles: Heavy-duty trailers using drum brakes (Pro-Par, flatbed, reefer, dry van)
• Spline Count: 37 spline
• Spline Diameter: 1.625″ (1-5/8")
• Arm Length: 6″ straight
• Arm Type: Manual, straight configuration
• Brake Type: Drum brake systems
• Camshaft Compatibility: 1.6″ dia S-cam
• Clevis Pin Size: 0.5″
• System: Manual mechanical adjuster, non-automatic
• Mounting Offset: Standard straight arm
• Special Features: Stainless body, bronze bushings, gold corrosion-resistant finish
• Performance: 30,000 in/lb torque rating (SAE J1461)
• Grease Fitting: Straight zerk
• Technology: Haldex/Midland-style, FMVSS 121 compliant
Applications:
Used on heavy-duty trailers with 37-spline drum brake S-cam shafts, including Pro-Par-equipped axles. Compatible with standard 30-type brake chambers. Designed for general-use brake systems on flatbed, dry van, and tanker trailers. Not suitable for disc brake systems.
CROSS-REFERENCE(S):
KN44041, E1574HD, R822007, 44041, WAKN44041, ZZKN44041, 065177, 283411, 283411N, R823008, R824007, 10-367, 10-367HD, 10-379, E1574S, E1574BK, 42492, 5-240, DAY-05240, HDX KN44041, TDA R824007, 983247R, NSKN44041, 134.3741, ATM-1343741, S-9861, MIR-KN-44041, 2012A, 2019A, OTR44041, RVKN44041, L841, PL-20, 283411BXW, 283411N, E-1574HD, E-1574BK, 065177, FP44041
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Align slack adjuster properly with S-cam shaft splines
✔ Use only compatible 1/2" clevis pins and matching brake chambers
✔ Torque mounting bolts to 35–50 ft-lbs (consult OEM for exact spec)
✔ Apply thread-locking compound to shaft if required
✔ Lubricate splines and clevis pins at install and service intervals
✔ Do not exceed 30,000 in/lb torque input
✔ Install only on drum brake systems; not compatible with disc brakes
✔ Avoid misalignment beyond 3 degree to prevent premature wear
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
