FP234189 - Type 16 Diaphragm

(0) Write a Review
SKU:
FP234189
Condition:
New
Availability:
Call 877-243-0442 for pricing. Mention code WEB1

Product Description

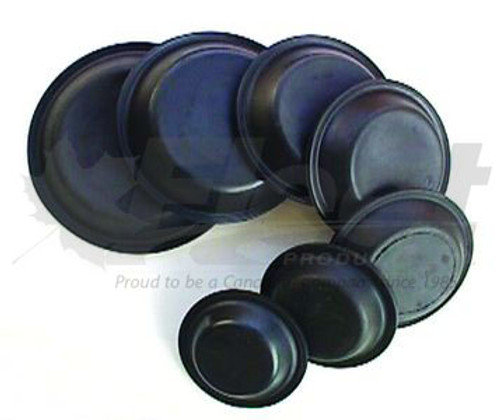

FP234189 – TYPE 16 DIAPHRAGM


PART NUMBER(S):
Fleet Products: FP234189 | OE: 234189 | Automann: 179.DT16


DESCRIPTION:

Model: Type 16 Air Brake Chamber Diaphragm
Vehicles: Commercial trucks and trailers using Type 16 air brake systems
• Stroke: 2.25" (57 mm)
• Diameter: 6.16" (156 mm)
• Height: 1.295"
• Material: Rubber/neoprene blend, fabric reinforced for long service life
• Construction: Gas and oil resistant; designed for high durability in extreme operating conditions
• Compatibility: Direct replacement for all standard Type 16 brake chambers

Applications:
Specifically engineered for use in heavy-duty truck and trailer air brake systems requiring Type 16 diaphragms. Maintains air seal integrity and operational reliability under demanding road and service conditions.


CROSS-REFERENCE(S):
234189, 802487, 236665, 18160, 031025, 179.DT16, E-8890, M462, N20151, 12-40016, MDP-4160, PL-D-16, 461216, 8016, 151-16, PTD16, T16, WAKW18160, S-5024
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.


IMPORTANT INSTALLATION NOTES:
✓ Confirm diaphragm size (6.16") and stroke (2.25") match the brake chamber specifications
✓ Use only in certified Type 16 brake chambers
✓ Follow OEM installation torque and procedure guidelines
✓ Inspect for cracking, hardening, or fatigue prior to installation
✓ Contact Fleet Products for support or application validation


SOLD AS NEW

Brand new and ready to install, with OEM Grade Reliability

SUPPORT & ORDERING

For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com

WHY CHOOSE FLEET PRODUCTS | KBR - HEAVY DUTY TRUCK & TRAILER PARTS?

  • Canadian-owned and operated since 1985
  • Trusted by fleets, mechanics, and B2B partners across North America
  • Fast, reliable shipping across North America
  • Competitive pricing with core return refunds
  • Price Match Guarantee | Find a better price? We'll beat the difference by 10%!

Warranty Information

Fleet Products Ltd. and KBR offer a comprehensive warranty on new and remanufactured truck parts, guaranteeing freedom from defective materials and workmanship for up to 160,000 km (100,000 miles), 3,600 hours, or 12 months-whichever comes first. Off-highway components are covered for 90 days against defects. To claim warranty service on truck brake parts or other components, return the product within 30 days of discovering a defect for inspection. This warranty covers repair or replacement of defective parts, but excludes damages from improper installation, maintenance, or service, and does not cover incidental costs such as towing or downtime. This ensures reliable truck parts and peace of mind for commercial vehicle operators. Visit our warranty section on website for full warranty details and product-specific terms.
