Product Description

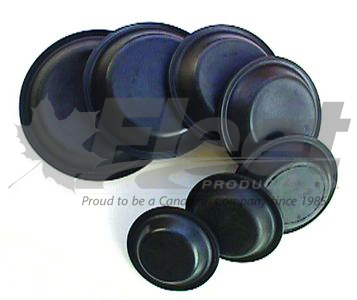

FP234101 – TYPE 30 DIAPHRAGM
PART NUMBER(S):
Fleet Products: FP234101, Bendix: 234101
DESCRIPTION:
Type: Type 30 Air Brake Chamber Diaphragm
Stroke: 2.50" (Standard)
Diameter: 7.88"
Material: Rubber
Application: Designed for replacement in Type 30 air brake chambers on commercial vehicles, ensuring reliable diaphragm performance and sealing.
• OEM-quality rubber construction for durability and airtight sealing
• Compatible with Type 30 chambers requiring a 2.5" stroke diaphragm
• Ensures proper air pressure containment and flexibility inside brake chambers
• Suitable for heavy-duty truck and trailer air brake systems
Installation Notes:
✓ Confirm diaphragm size (7.88"–7.9") matches the brake chamber requirements
✓ Verify compatibility with Type 30 air brake chamber and 2.5" stroke
✓ Follow OEM installation procedures for diaphragm replacement
✓ Inspect for damage or wear prior to installation to maintain system integrity
CROSS-REFERENCE(S):
234101, 234101N, 236668, BW234101, BW234101N, 179.DT30, BCD30, M-466, 12-23009, 85-23009, T30, 928030, 1737A7, 18300, 234101NPTP, 802490, 179.DT303103342000116, 2J0168
IMPORTANT INSTALLATION NOTES:
✓ Ensure exact diaphragm size and stroke match chamber requirements
✓ Follow OEM torque and installation guidelines
✓ Use only OEM or equivalent parts to maintain brake system safety
✓ Contact Fleet Products for technical support if needed
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
