Product Description

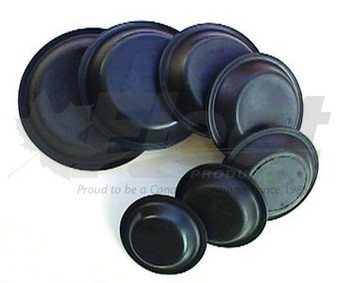

FP234100 – TYPE 24 DIAPHRAGM
PART NUMBER(S):
Fleet Products: FP234100 | OE: 234100 | Automann: 179.DT24
DESCRIPTION:
Model: Type 24 Air Brake Chamber Diaphragm
Vehicles: Suitable for heavy-duty trucks, trailers, and commercial air brake systems
• Stroke: 2.50"
• Diameter: 7.00" (nominal)
• Material: OEM-grade rubber, engineered for long life, flexibility, and resistance to environmental deterioration
• Operating Temperature Range: -40°F to 212°F
• Compatibility: Interchangeable with all major OEM and aftermarket Type 24 diaphragms (rubber and neoprene)
• Performance: Ensures proper sealing and pressure integrity inside spring brake and service chambers
Applications:
Ideal for use in heavy-duty commercial brake chambers that require a Type 24 diaphragm. Maintains airtight seal and chamber flexibility across a broad temperature range. Direct fit for OE and aftermarket systems.
CROSS-REFERENCE(S):
234100, 234100N, 234100BXW, 236667, 42-400, 802489, BD24, BEN-234100N, BW236667, BW802489, BX234100, BX236667, BX802489, DP24LM1D, MIDDP24L, 18240, DP24, KN18240, N20097, AM179DT24, 55548017141, 745234100N, E-8892, E8892, 85-23008, T24, 928024, 1737A6, 12-40024, 234100NPTP, RF570011154, 1-126, 1126, 031031, 5396-N20097, 64-SM-19, 64SM19, 745-234100, 2J-0167, 5K-5941, BW234100, HDX DP24L, S-1797, S1797, GT-5208, 234100K, T1027, 2797D108, R8708892, 42400, EM42400, MDP-4240, 4240, 8971205304, BX234100, 137145R1, BX234100N, 137145R, 818187, 1614798, V338452, 461224, MPn234100x6, rf20019087
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✓ Confirm diaphragm size (7.00") matches brake chamber specifications
✓ Ensure 2.50" stroke compatibility with Type 24 chamber
✓ Follow OEM procedures for diaphragm installation and torque specs
✓ Always inspect chamber and surrounding components for damage prior to diaphragm replacement
✓ Contact Fleet Products technical support for assistance if needed
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
SUPPORT & ORDERING
For technical support, installation guidance, or to confirm fitment, Call: 1-877-243-0442 | Email: sales@fleet-products.com
