AIR DISC ROTOR FOR PAN22 WITH HARDWARE
PART NUMBER(S):
Fleet Products: FP10018609 | OE: 10018609, R6206M, 650-40175072
DESCRIPTION:
Model: WABCO PAN22
Engines: N/A
Vehicles: IMT, Hendrickson, SAF-Holland Axles (PAN22 System)

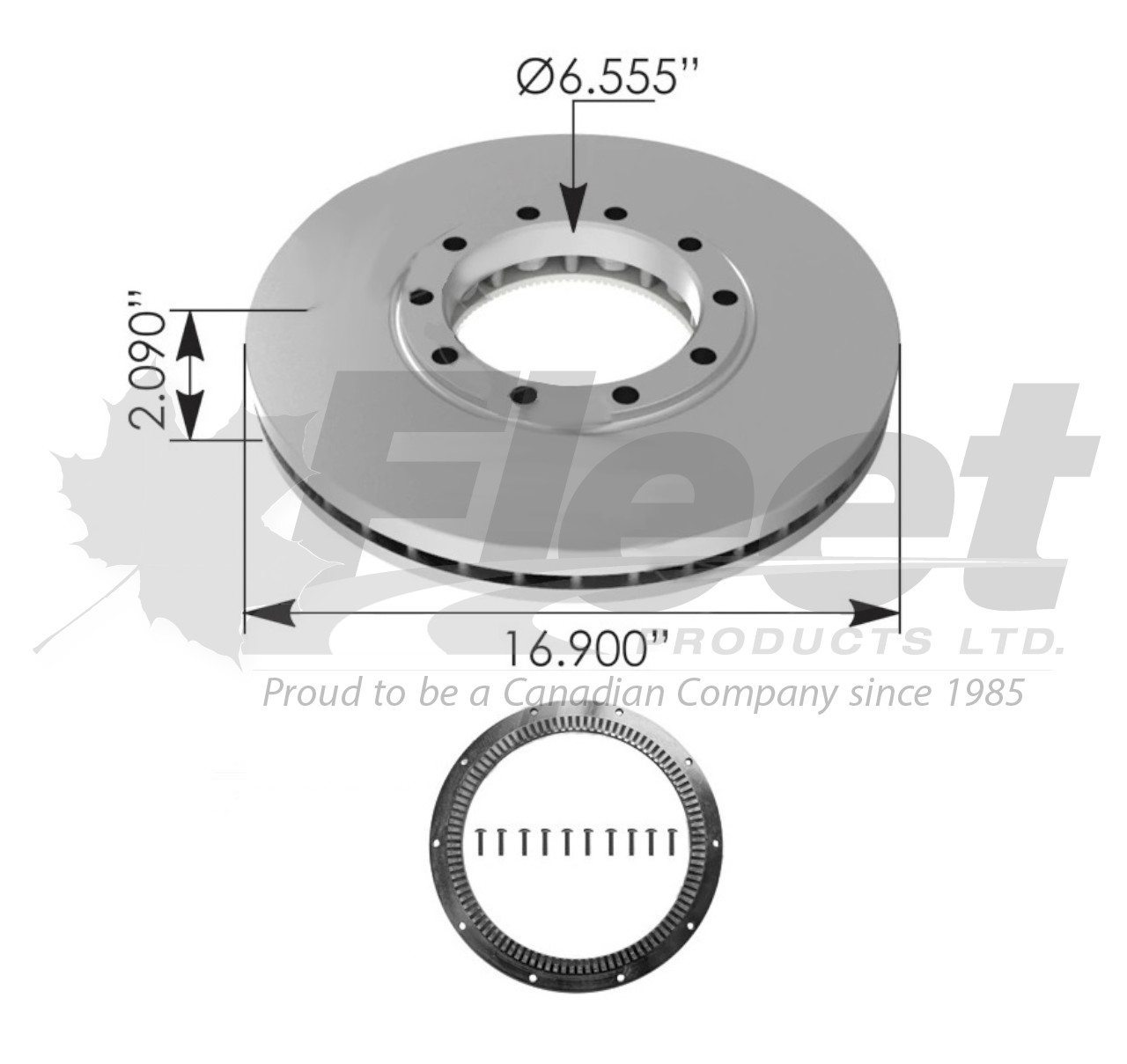

• Rotor Style: F-Style (integrated ABS ring)
• Material: High-carbon alloy iron (GGG60)
• Outside Diameter: 429.30 mm (16.90")
• Overall Depth: 53.01 mm (2.090")
• Pilot Diameter: 166.40 mm (6.555")
• Bolt Circle: 199.60 mm (7.860")
• Bolt Hole Count/Size: 10 holes × 0.660" (M16-2)
• Weight: 53 lbs (24.04 kg)
Compatible Pads: PE1777HK
Applications:
Direct-fit service rotor for WABCO PAN22 disc brake systems with ABS. Used primarily on IMT, SAF-Holland, Hendrickson, and other commercial trailer axles requiring 16.9" rotors with ABS integration. Compatible with PE1777HK pads and all PAN22-calipered assemblies Calipers Fitment: FP40225015WC-G, FP40225016WC-G, FP6402250800WC-G, FP6402250810WC-G, FP40225015WCX, FP40225016WCX, FP6402250800WCX, FP6402250810WCX. Not for use on systems without ABS tone ring integration.
CROSS-REFERENCE(S):
M44DH18609, CM10018609, 10084199, 1065016GF, 76801, DWTR0039, CONMET FLAT, 153.116195, 56092PK, ADR1060, CDR1073, 56092F, 56092P, OTR76801, 125701, 10016195, 10085621, 10083733, AMR2244N, R6206M, 10018609, 10018609NX, R10018609, 4018609, 25.10018.609, 131.10018609, 55102, SBR10018609, R-10018609, FP-10018609, UP910018609, TP-PAN22-R, FIP-10018609, PHD-10018609, FP40225015WC-G, FP40225016WC-G, FP6402250800WC-G, FP6402250810WC-G, FP40225015WCX, FP40225016WCX, FP6402250800WCX, FP6402250810WCX
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Ensure system air pressure is 100–120 psi, wheels are blocked, and spring brakes are released prior to rotor/caliper adjustment
✔ ABS ring must align with sensor—do not impact or deform during installation
✔ Clean hub face before mounting—do not apply lubricant to rotor/hub interface
✔ Follow torque procedure using star pattern: 180 Nm ±5%
✔ Rotor lateral/axial runout must not exceed 0.08 mm
✔ Bedding: Perform 15 stops from 30 mph at 0.3g deceleration
✔ Minimum usable thickness: 38.5 mm – do not machine below this spec
✔ Install only with PAN22 calipers; check pad clearance post-install
SOLD AS NEW
Brand new and ready to install, with OEM Grade Reliability
