Product Description

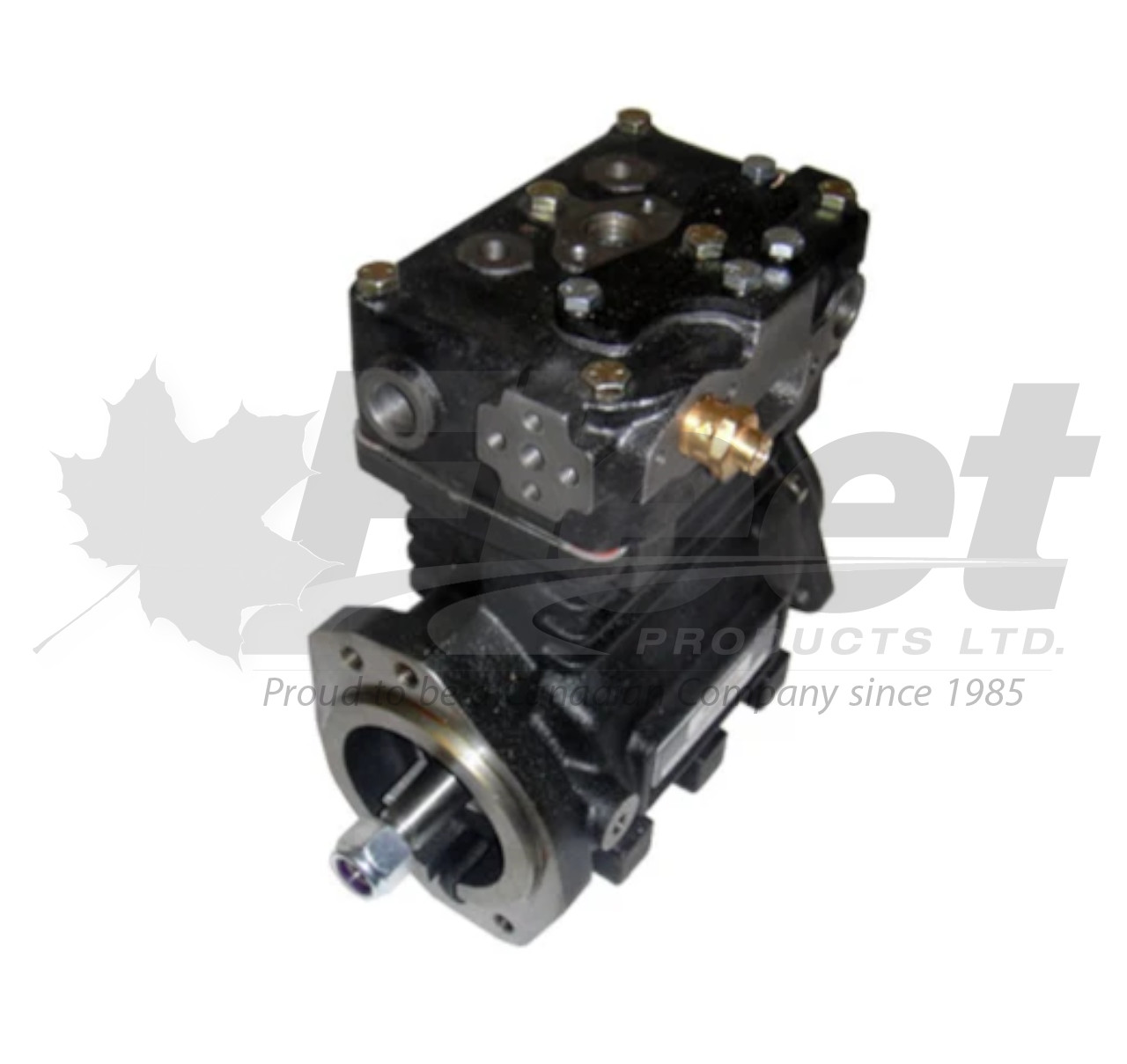

TF-750 AIR BRAKE COMPRESSOR – DT466/HT530 NAVISTAR ENGINE
PART NUMBER(S):
Fleet Products: 5004614X (Remanufactured) | OE: 5004614, 5004612, 109659X
DESCRIPTION:
Model: Tu-Flo 750
Vehicles: Navistar DT466, HT530, HT570 Engines (Various vocational, medium-duty trucks & buses)
• Rated Output: 16.5 CFM @ 1250 RPM
• Configuration: Two-cylinder, single-stage, reciprocating compressor
• Mounting: Flange mount
• Cooling: Water-cooled
• Air Inlet Location: Right
• Air Outlet Location: Left/top (optional discharge type)
• Shaft: 11-tooth tapered accessory drive
• Cylinder Head: Dual 180° install options; iron cast
• Governor Mounting: Front and rear ports
• Rear Cover: Flanged removable style
• Weight: Approx. 44–46 lbs
• Stroke: 47.5 mm
Applications:
The TF-750 is a high-capacity air compressor for air brake systems and auxiliary pneumatic functions on heavy-duty Navistar-powered platforms. Ideal for severe-service duty cycles in vocational trucks, 18-wheelers, and buses. Designed to deliver dependable performance under sustained loads in DT466 and HT-series engine environments.
CROSS-REFERENCE(S):
5004614, 5004612, 109659X, 109287X, 5004118, 65461, 2003253C94, 2003253C95, 2003253C97, 1696864C91, 1696864C92, 745-5004614X, BW5004614X, R9555004614X, BX5004614, BAR5004614, 800469
A cross-reference listing means this part may be a suitable replacement for the part numbers listed. Always confirm specifications match your application before installation.
IMPORTANT INSTALLATION NOTES:
✔ Verify DT466/HT530 engine fitment before installation
✔ Mount using proper flange torque values to avoid stress fractures
✔ Confirm discharge direction (top or side) based on system routing
✔ Replace gaskets, copper washers, and inspect governor ports
✔ Flush cooling and pneumatic lines thoroughly before reactivation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
