5000404X TF-1400 DETROIT COMPRESSOR ENGINE DRIVE REMANUFACTURED
PART NUMBER(S):
Fleet Products: 5000404X (Remanufactured) | Replaces OE: Bendix: 5000404, 107836, 065540, 109440BXR
DESCRIPTION:

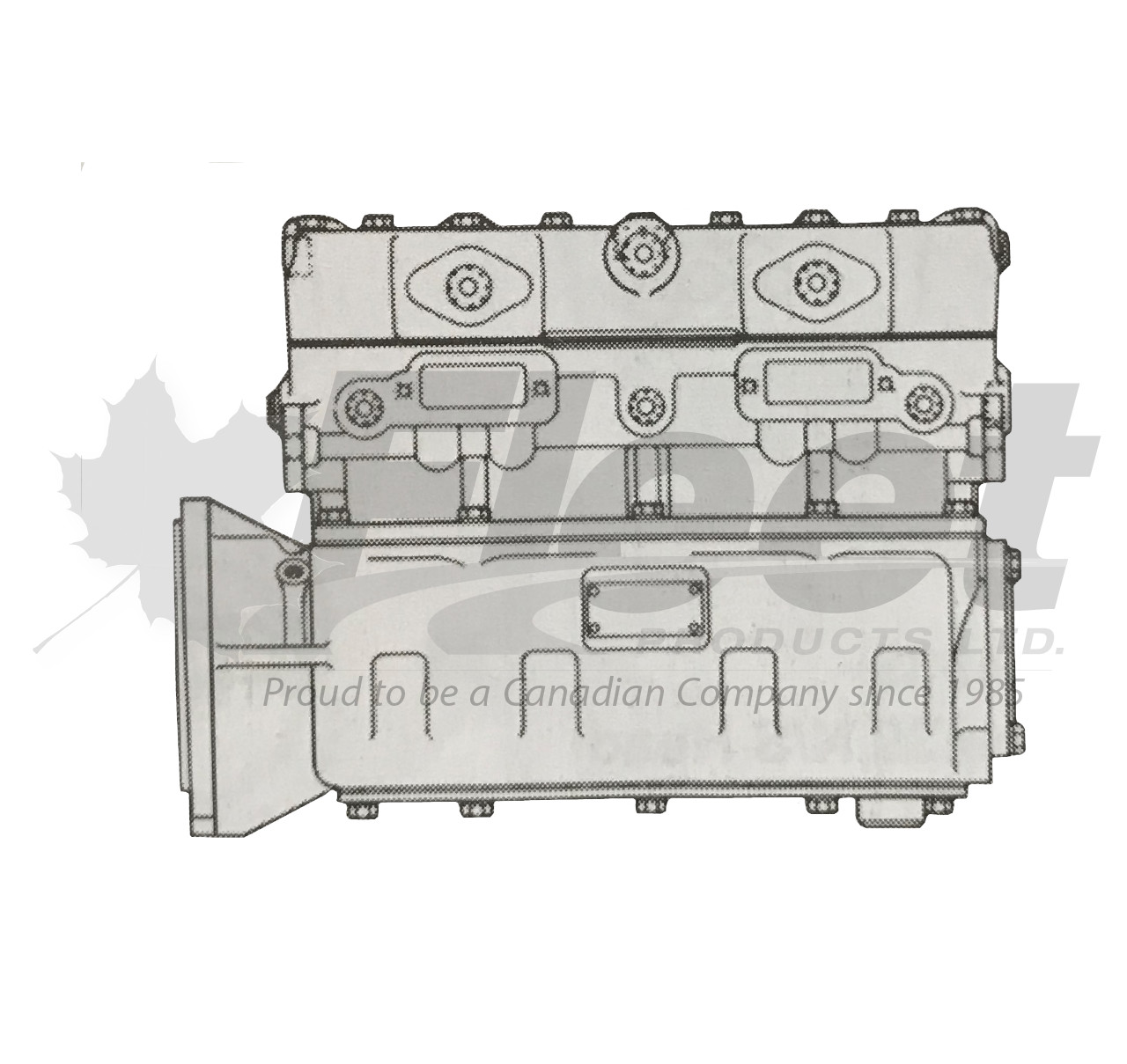

Model: Bendix Tu-Flo 1400 Detroit Air Brake Compressor
Vehicles: Detroit Diesel powered heavy-duty trucks and commercial vehicles
• Drive type: Engine driven
• Cooling: Water cooled
• Rated displacement: 31 CFM @ 1250 RPM
• Air discharge port: 1-1/2 in NPT
• Water outlet port: 1/2-14 NPT
• Air inlet port: 3/4-14 NPT
• Water inlet port: 3/8-18 NPT
• Governor port: 1/4-18 NPT
• Oil inlet port: 1/8-27 NPT
• Oil drain port: 1/2-14 NPT
Applications:
Designed for Detroit Diesel engine-driven applications requiring a Bendix Tu-Flo 1400 air compressor. Supplies compressed air for heavy-duty air brake and auxiliary air systems using the original cooling, drive, and port configuration.
CROSS-REFERENCE(S):
5000404X, 5000404, 107836, 065540, 109439, 5000630, 109440BXR
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm engine-drive mounting alignment before installation
✔ Prime the compressor with clean engine oil before initial startup
✔ Ensure coolant, oil, and air lines are clean and free of restrictions
✔ Replace all mounting gaskets and seals during installation
✔ Check for air, oil, and coolant leaks after the system reaches operating pressure
✔ Seal and torque all NPT fittings to OEM specifications
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
