Description

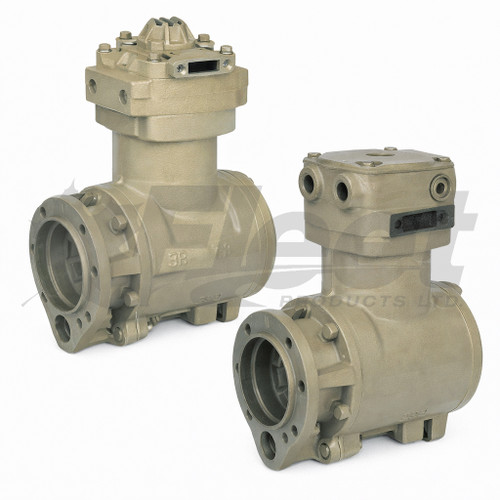

3558015X – SS338 CUMMINS COMPRESSOR
PART NUMBER(S):
Fleet Products: 3558015X | OE: 3558015X, 3558015, 3558005X, 3558005, SS338
DESCRIPTION:
Model: SS338 Cummins Compressor
Vehicles: Heavy trucks, semi trucks, 18-wheelers, commercial trucks
• Engine Platforms: Cummins C Series, L10, N14, K19
• Mount: Flange Mount
• Drive: Engine driven, thru-drive enabled
• Cooling: Water Cooled
• Air Inlet Port: Left
• Air Outlet Port: Front (Threaded Discharge)
• Spline: 9 Tooth (standard), 11 Tooth (variant)
• Displacement: 15 CFM
Applications:
Designed for use in Cummins C Series, L10, N14, K19 engines, this high-duty cycle compressor provides reliable pressurization for air brake systems in commercial vehicles. Built for heavy-duty applications, it is ideal for fleet trucks, semi trucks, and 18-wheelers.
CROSS-REFERENCE(S):
SS338E, SS338, 3558015X, 3558015, 3558005X, 3558005, 3558020X, 3558013X, 3558016X, 3558021X, 3558023X, 3558043X, 3558047X, 3558080X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Remanufactured to OEM standards; core return required
✔ Fully cleaned, inspected, and pressure tested for durability and performance
✔ Ensure proper spline engagement (9 tooth or 11 tooth variants available)
✔ Match front-threaded discharge with air delivery line for correct installation
✔ Compatible with thru-drive for power steering pump functionality
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
