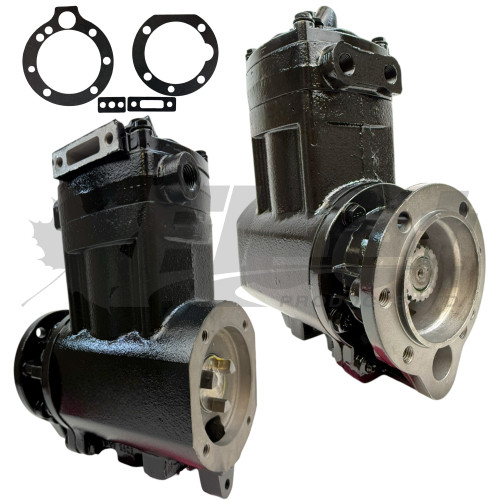

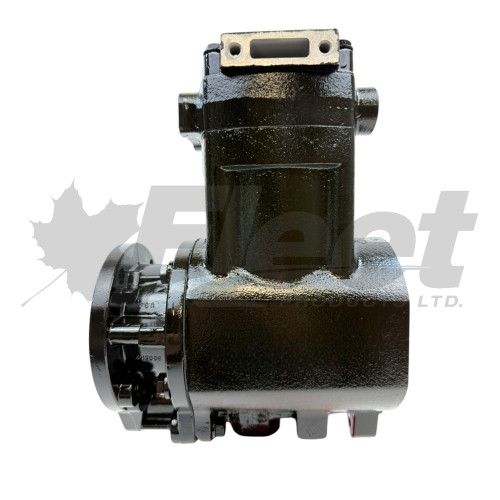

3018544X - SS296 CUMMINS AIR BRAKE COMPRESSOR - REMANUFACTURED
PART NUMBER(S):
Fleet Products: 3018544X (Remanufactured) | Replaces OE: Cummins: 3015630, 3018534, 3018543, 3018543X, 3018544, 3018544RX, 3018551, 3018553, 3018555, 3024365, 3047440, AR8053, AR8161, AR8307, AR8371, AR10650, AR11952, AR13135, AR13136, AR13139, AR13142, AR13150, AR13160, AR40220, AR45211
DESCRIPTION:
Model: Holset SS296 Super Single Cummins Air Brake Compressor
Vehicles: Cummins L10, M11, and N14 engine applications in heavy-duty commercial trucks
• Compressor Family: SS Super Single
• Design: Single-cylinder air brake compressor
• Mounting: Engine-mounted, square flange crankcase
• Cooling: Water cooled
• Lubrication: Engine lubricated
• Unloader Port: Left, direct type
• Air Inlet Location: Left
• Air Outlet Location: Rear
• Rated Output: 13.2 CFM @ 1250 RPM
• Bore x Stroke: 2.75 in x 1.50 in
• Shaft Type: Tapered
• Port Orientation: Viewed from rear
• Turbochargeable: Yes
Applications:
Used on Cummins L10, M11, and N14 engine applications requiring a Holset SS296 single-cylinder compressor with square flange crankcase, left-side inlet, rear outlet, direct-type left unloader port, and tapered shaft. Match by OE number, engine fitment, crankcase flange, port routing, unloader configuration, and shaft type before installation.
CROSS-REFERENCE(S):
200811, 200812, 3005840, 3010879, 3015034, 3016082, 3018527, 3018530, 3018531, 3018541, 3018542, 3018545, 3046440, 3050776, 3265160, 3558035, 3558035RX, AR3417, AR3930, AR7944, AR13134, R9553018527X,
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm Cummins L10 / M11 / N14 fitment, SS296 model, and square flange crankcase compatibility before installation
✔ Verify left-side inlet, rear outlet, and left direct-type unloader port orientation against the original compressor
✔ Flush cooling and oil lines before installation to remove debris and contamination
✔ Match direct-type unloader configuration to the engine setup before startup
✔ Use proper Cummins torque procedure and replace required gaskets and filters during installation
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
