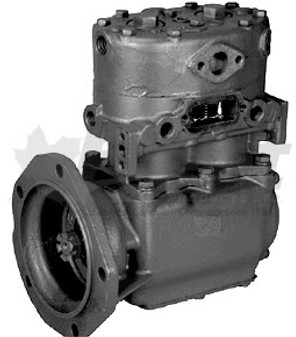

289790X TF-700 DETROIT COMPRESSOR 75° DDC GEAR DRIVE REMANUFACTURED
PART NUMBER(S):
Fleet Products: 289790X (Remanufactured) | Replaces OE: Bendix: 108622, 280422, 289264, 289790 | Detroit Diesel: 23509473, 5133913, R23509473 | GM: 5133913, 5139316
DESCRIPTION:
Model: Bendix Tu-Flo 700 Detroit Air Brake Compressor
Vehicles: Detroit Diesel 75° tilt engine and bus applications
• Mounting: Flange mount
• Drive: Gear drive
• Head rotation: Left
• Block rotation: Left
• Air outlet location: Top
• Discharge type: Flange discharge
• Cooling: Water cooled
• Oil feed: End cap
• Oil drain: Flange mount
• Cylinders: 2
• Bore × Stroke: 2.75 in × 1.81 in
• Rated displacement: 15.5 CFM @ 1250 RPM
• Maximum speed: 3000 RPM
• Minimum coolant flow: 2.5 GPM
• Minimum unload pressure: 60 PSI
• Maximum inlet temperature: 250°F
• Maximum discharge temperature: 400°F
• Discharge line: 5/8 in OD copper
• Oil return line: 5/8 in OD
• Oil supply line: 1/4 in OD
• Unloader line: 1/4 in OD
• Coolant line: 1/2 in OD
• EL16250X may also be used for this application
Applications:
Designed for Detroit Diesel 75° tilt engine and bus applications requiring a Bendix Tu-Flo 700 gear-drive air brake compressor. Supplies compressed air for heavy-duty air brake and auxiliary pneumatic systems using the original Detroit flange mount, gear drive, and rotation configuration.
CROSS-REFERENCE(S):
EL16250, E-BN289790X, BWR289790, N7225, 23509473, 5133913, R23509473, 5139316, 108622, 280422, 289264, 289790, EL16250X, 289790BXR
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Verify 75° tilt flange configuration before installation
✔ Confirm left head rotation and left block rotation match the original compressor
✔ Confirm gear drive engagement before mounting the compressor
✔ Replace all mounting gaskets and seals during installation
✔ Ensure coolant, oil, and air passages are clean and unrestricted
✔ Prime the compressor with clean engine oil before initial startup
✔ Check for air, oil, and coolant leaks after the system reaches operating pressure
✔ Torque all mounting hardware and fittings to OEM specifications
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
Warranty Information
