Product Description

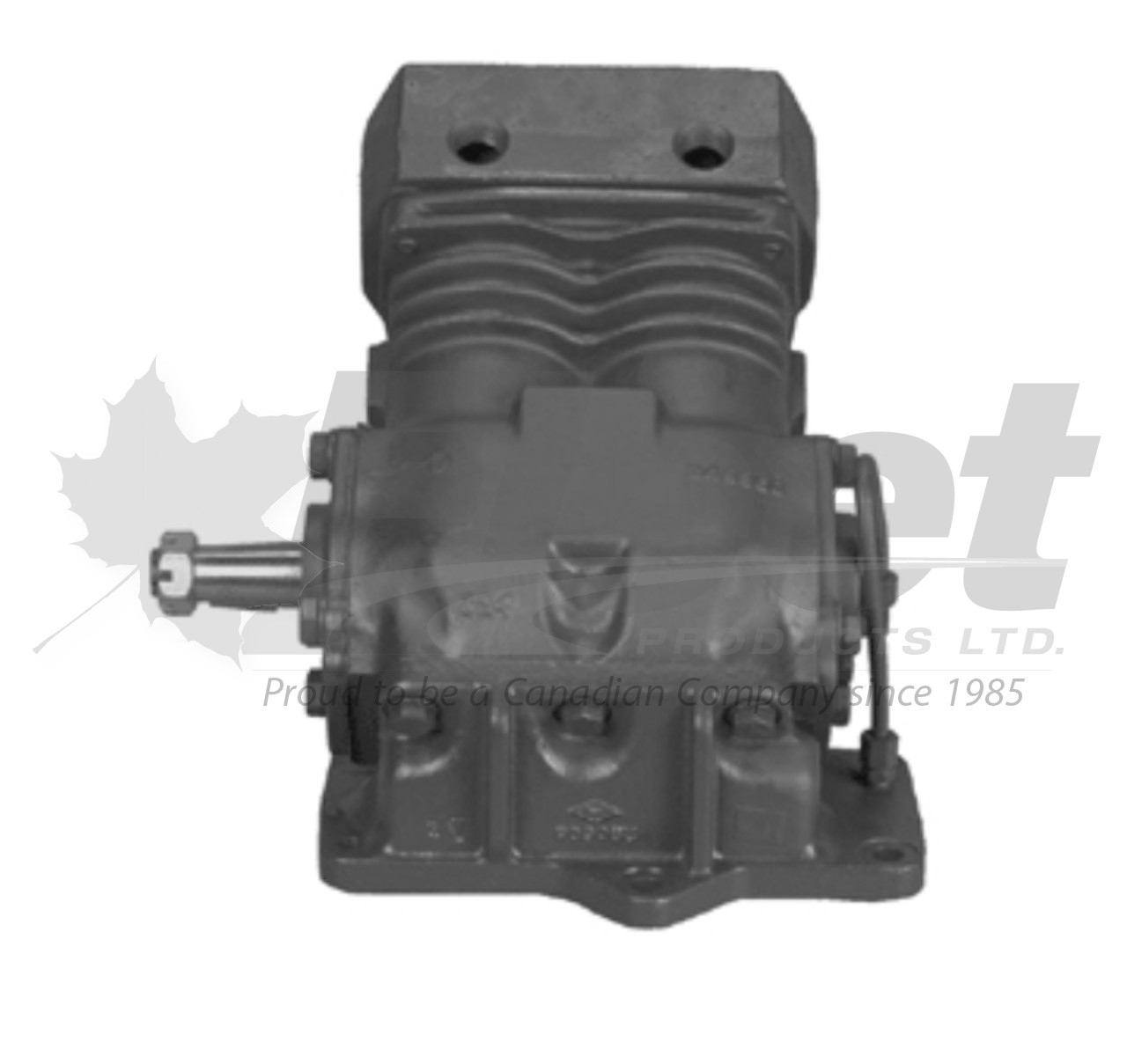

286562X – TF-501 PULLEY DRIVE COMPRESSOR (SLANT MOUNT – RIGHT)
PART NUMBER(S):
Fleet Products: 286562X (Remanufactured) | OE: 286562, 286561, 286558
DESCRIPTION:
Model: TF-501 Pulley Drive Slant Mount – Right
Vehicles: Heavy-duty trucks, semi trucks, and commercial trucks
• Mounting Style: Slant mount (Right) – orientation viewed from rear
• Cooling: Water/Air
• Air Inlet Location: Left
• Air Outlet Location: Top
• Discharge Type: Threaded
• Approximate Weight: 40 lbs
• Notes: Base oil option
Applications:
What’s this compressor used for? Designed for trucks and trailers equipped with slant-mount air brake systems. Matches configurations using a right-slanted pulley-driven TF-501 compressor, commonly used across Cummins-powered and aftermarket air brake setups.
CROSS-REFERENCE(S):
286562, 286561, 286561X, 286558, 286558X, 228479, TF-501, BW286561X, BX286561X, MID286561X, BEN286561X, EBN286561X, R955286561X, EL13061, EL13061X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm slant orientation (right side) when viewed from rear of unit
✔ Use BN144K installation kit for mounting and service support
✔ Threaded discharge must match existing plumbing
✔ Confirm compatibility with existing base oil lubrication path
✔ Port and base orientation must match OEM specifications
Meta Data
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
