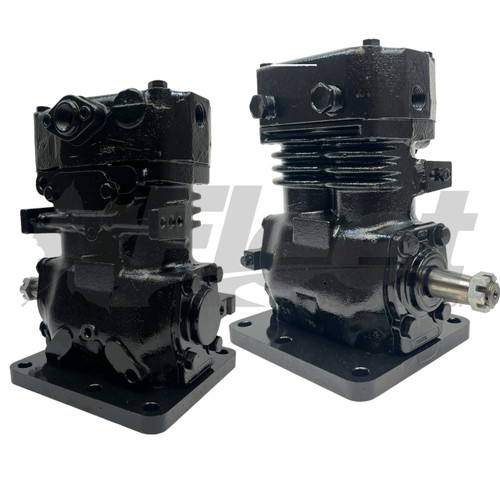

286560X - TF-501 BASE MOUNT PULLEY DRIVE AIR BRAKE COMPRESSOR - REMANUFACTURED
PART NUMBER(S):
Fleet Products: 286560X (Remanufactured) | Replaces OE: Bendix: 285960, 102822, 285960, 286529, 286560, 286640, 289751
DESCRIPTION:
Model: Bendix Tu-Flo 501 (TF-501) Base Mount Pulley Drive Air Brake Compressor
Vehicles: G.M.C. heavy-duty truck, semi truck, and commercial vehicle applications requiring TF-501 base-mount pulley-drive fitment
• Mounting Style: Base Style A, 4-hole base mount
• Cooling: Water / air cooled
• Air Inlet Location: Left, viewed from rear
• Air Outlet Location: Top threaded discharge
• Drive Type: Pulley drive
• No. of Cylinders: 2
• Bore x Stroke: 2.625 in x 1.50 in
• Displacement @ 1250 RPM: 12 CFM
• Displacement Per Revolution: 16.5 cu in
• Max RPM: 3000 naturally aspirated
• HP @ 3000 RPM / 100 PSI: 4.9 HP
• Minimum Coolant Flow @ Max RPM: 2.5 GPM
• Minimum Unload Pressure: 60 PSI
• Temperature Range: 250°F inlet / 400°F discharge
• Line Sizes: 5/8 in OD copper discharge, 5/8 in OD oil return, 1/4 in OD oil supply, 1/4 in OD unloader, 5/8 in ID inlet cavity to air cleaner, 1/2 in OD coolant
• Includes: 4 front cover studs
Applications:
Used on G.M.C. commercial truck applications requiring a TF-501 compressor with Base Style A 4-hole mounting, pulley drive, left-side inlet, and top-threaded discharge. Match by OE number, base mount pattern, pulley alignment, port orientation, and discharge configuration before installation.
CROSS-REFERENCE(S):
04625286592X, BXC286592X, EL13060, EL13060X
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Verify Base Style A 4-hole mount, pulley-drive setup, left-side inlet, and top-threaded discharge before installation
✔ Confirm port orientation viewed from the rear of the compressor
✔ Apply thread sealant to air inlet threads before tightening
✔ Torque air inlet fitting to 18–22 ft-lb and discharge fitting to 25–28 ft-lb
✔ Verify EL13060 / EL13060X interchange before using as an alternate compressor
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
