Description

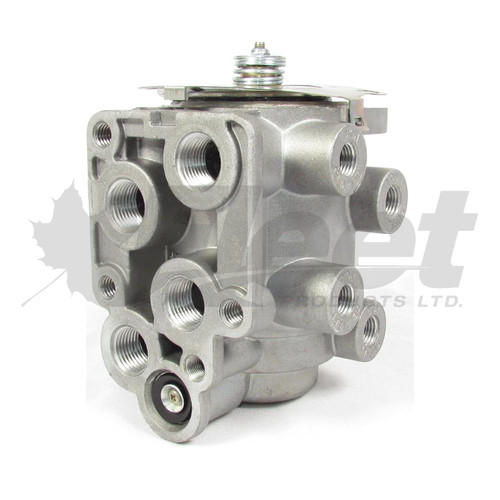

286171-G - E-6 DUAL-CIRCUIT FOOT BRAKE VALVE - 3/8" NPT
PART NUMBER(S):
Fleet Products: 286171-G (New) | Replaces OE: Bendix: 286171, 286516, 287255, 288321, 103096, 107872, 109184, 286171, 286173, 287437, 286890, 286895, 286896, 288321, 287078, 287088, 287089, 289102, 289103, 289106, 289129, 288774, 289390, 289478, 289479, 289480, 289505, 289544, 289595 | Automann: 170.286171 | Haldex: KN22140, KN22150, KN22150X | International: 452950C92, 1676728C1 | Mack: 20QE3114R | Caterpillar: 9N4336 | WABCO: 9618800010, 4613310000, 4613320000 | Rockwell: 9618990110 | Meritor: R955286171N | Euclid: EBN286171N | Velvac: 034039 | PAI: EM36300 | Dayton Parts: AV286171
DESCRIPTION:
Model: Bendix E-6 Dual-Circuit Foot Brake Valve
Vehicles: Heavy-duty trucks, tractors, buses, and vocational vehicles using dual-circuit air brake systems
• Valve Type: Dual-circuit pneumatic foot brake valve
• Supply Ports: Four 3/8"-18 NPT
• Delivery Ports: Four 3/8"-18 NPT
• Exhaust: Common diaphragm-protected exhaust
• Differential Pressure: 3.0 PSI
• Mounting Holes: Three 5/16"-18 UNC-3B threaded
• Mounting: Floor-mounted axial port configuration
• Actuation: Treadle or lever operated
• Graduation Spring: Rubber
• Port Protection: Integral screen filters
• Treadle and Mounting Plate: Not included
• Primary Circuit: Controls primary service brake pressure
• Secondary Circuit: Controls secondary service brake pressure
• Function: Provides graduated dual-circuit brake application
Applications:
Designed for floor-mounted service brake control in dual or split air brake systems. The separate primary and secondary circuits provide graduated brake pressure and maintain braking capability if one circuit loses pressure.
CROSS-REFERENCE(S):
286171N, 286171NP, 286171P, 286171RX, 286171X, 286171BXW, 286171CX, 286171KTP, 286171NBXW, OR286171, OR286171X, 0R286171BXR, 170286171, AM170286171, KN-22140, KN-22150, R955286171X, RKN22150, E-BN286171N, 101100, 102178, 110400, 1140918, 14461, 1576011, 1676-728-C, 1676728C, 20-QE-3114, 20-QE-3114-R, 28611BXW, 3507334, 3630, 36300, 3V-1458, 401133, 452-950-C, 452950C, 548493C91, 4E-4281, 4R-15-3, 4V-2786, 6G-8425, 6W-7075, 6W-7858, 745-286171, 745-286171N, 8235RKN22150, 961 880 001 0, 9C-4441, 9U-4539, A12-13004-000, ACA-01774700, B4771GRP, BAN286171, BEN-286171, BEN-286171N, BEN-BX286171N, BEN-OR286171X, BER-286171, BW 286171, BW 286171N, BW 802465, BW 802469, BW OR286171, BW OR286171X, BW286171, BW286171N, BW286516, BW287255, BX286171, BX286171N, BX286516, BX287255, BXW286171, DP30081, F224707, FC286171, FLT FS286171N, FLTBV171, K295-302-1, LFV-3630, M-286171, M7X-0283, NS286171, OTR286171, S-4771, S4771, TDA RKN22150, TDAR955286171, TR286171, TRA021, TV286171, WAKN22150, WKN22150, ZAC286171, 0587-286171P, 34039
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ Confirm all four supply and four delivery connections are 3/8"-18 NPT.
✔ Mount using the three 5/16"-18 threaded mounting holes.
✔ Connect the primary and secondary circuits according to the vehicle schematic.
✔ Reuse or source the correct treadle and mounting plate separately.
✔ Test both circuits for graduated delivery, rapid exhaust, and leak-free operation.
