Description

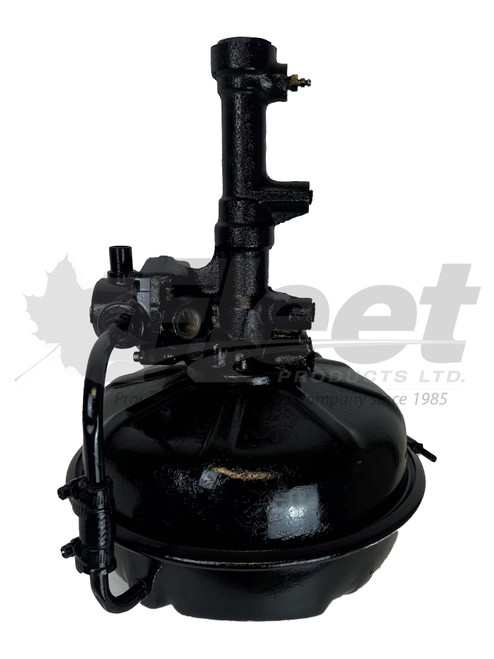

2513494X - HYDROVAC (IHC)
PART NUMBER(S):
Fleet Products: 2513494X (Remanufactured) | Replaces OE: Bendix 2513494 | Navistar (IHC) 575277C91, 1650527C91, 419168C91 | Other 2514917, 4150983, 2500517, 2504105, 2512076, 2513171, 2504055, 2504985, 2504058
DESCRIPTION:
Type: Hydrovac brake booster (single diaphragm, fourth series)
Application: Hydraulic brake systems; International 1700 Loadstar (IHC)
• Dimensions: 12.75 in diameter
• Dimensions: 17.625 in overall length
• Port: 5/16 in inverted flare inlet, 5/16 in inverted flare outlet
• Port: 3/4 in air cleaner
• Port: 1/2 NPT vacuum supply
• Mounting: Frame mount, no bracket
CROSS-REFERENCE(S):
2513494
IMPORTANT INSTALLATION NOTES:
✔ Use existing hardware; frame mount, no bracket supplied
✔ Both inlet/outlet ports are 1/2"-20 thread; adaptors for 7/16"-24 may be supplied
✔ Vacuum port threaded frame nipple adapts from 1/2" to 3/8" if needed
✔ Atmospheric port adaptors for 1/2" or 3/4" hose; use O-ring for seal; torque adaptor to 80–120 in-lb
✔ Install supplied vacuum check valve higher than vacuum source
✔ Bleed with engine off; follow manual/pressure bleed instructions
✔ Minimum 16" Hg vacuum required for proper brake boost
✔ With 150 lbs. pedal force and 16" Hg vacuum, minimum 1000 psi at wheel brakes
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
