Product Description

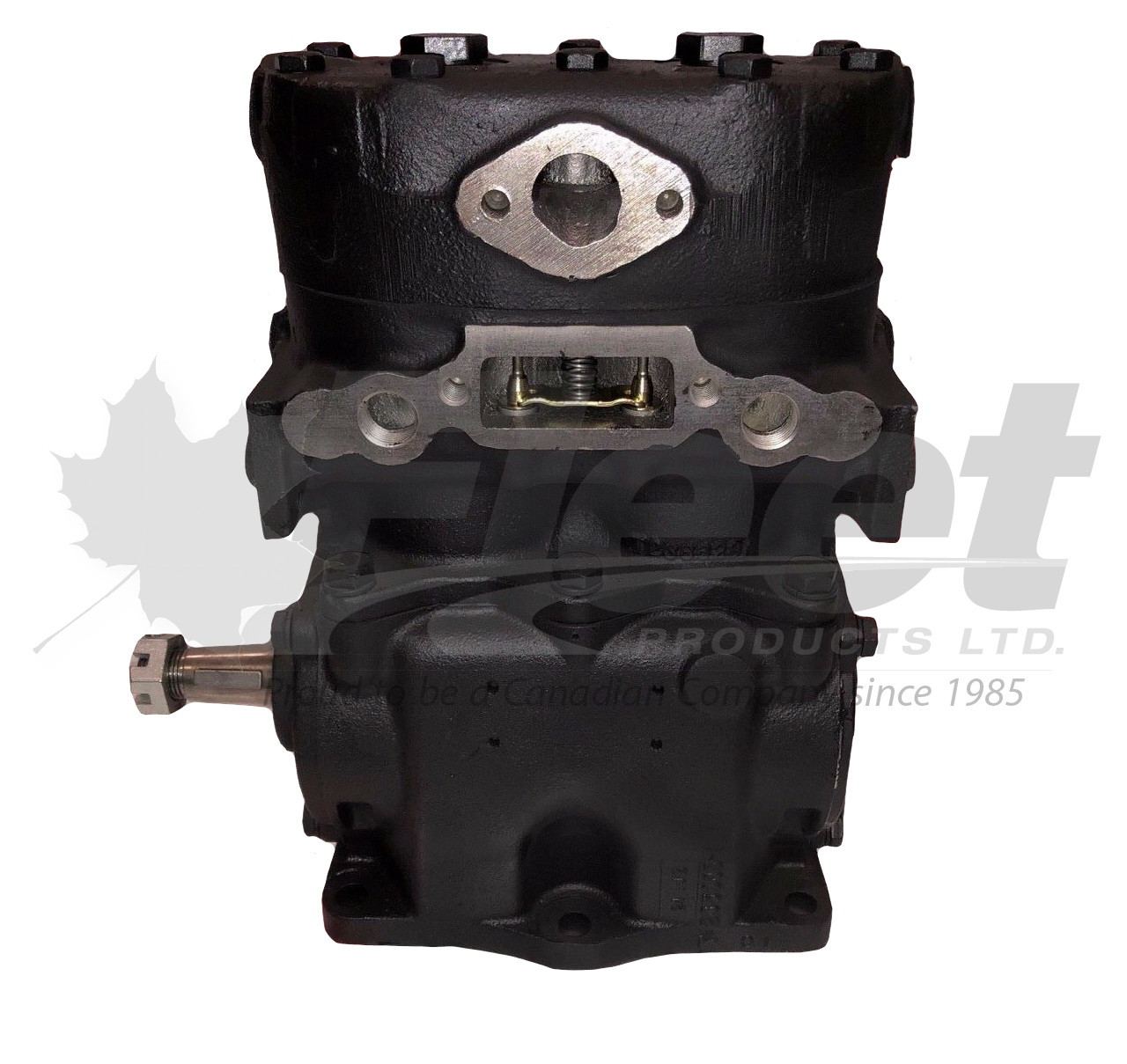

228139X - TF-500 PULLEY DRIVE COMPRESSOR (RIGHT PORTS, 4-HOLE BASE)
PART NUMBER(S):
Fleet Products: 228139X (Remanufactured) | OE: 228139, 227321, 227320TP
DESCRIPTION:
Model: TF-500 Pulley Drive Compressor
Vehicles: Commercial trucks, trailers, and 18-wheelers requiring TF-500 pulley-mounted air systems
• Cooling: Water cooled
• Drive Type: Pulley (belt driven)
• Mounting: 4-hole base
• Air Inlet: Right (viewed from rear)
• Air Outlet: Right (viewed from rear)
• Discharge Type: Flange
• Rated Displacement: Approx. 12 CFM @ 1250 RPM
• Bore x Stroke: Approx. 2.5" x 1.6875" (TF-500 family spec)
• Notes: Base oil feed option
Applications:
Where is it used? Ideal for water-cooled TF-500 pulley-driven air systems on fleet-class vehicles. Compatible with multiple Bendix/aftermarket 4-hole base configurations requiring right-hand port orientation.
CROSS-REFERENCE(S):
228139, 227321, TF-500, 4-HOLE BASE, 227320TP, BX227320X, 745227320, 04625227320X
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Confirm right-side inlet and outlet ports before install
✔ Mounts to 4-hole base; align flange with OEM specs
✔ Typical flange nut torque is 80–100 ft-lbs
✔ Installation must follow OEM port and oil feed orientation
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
