Product Description

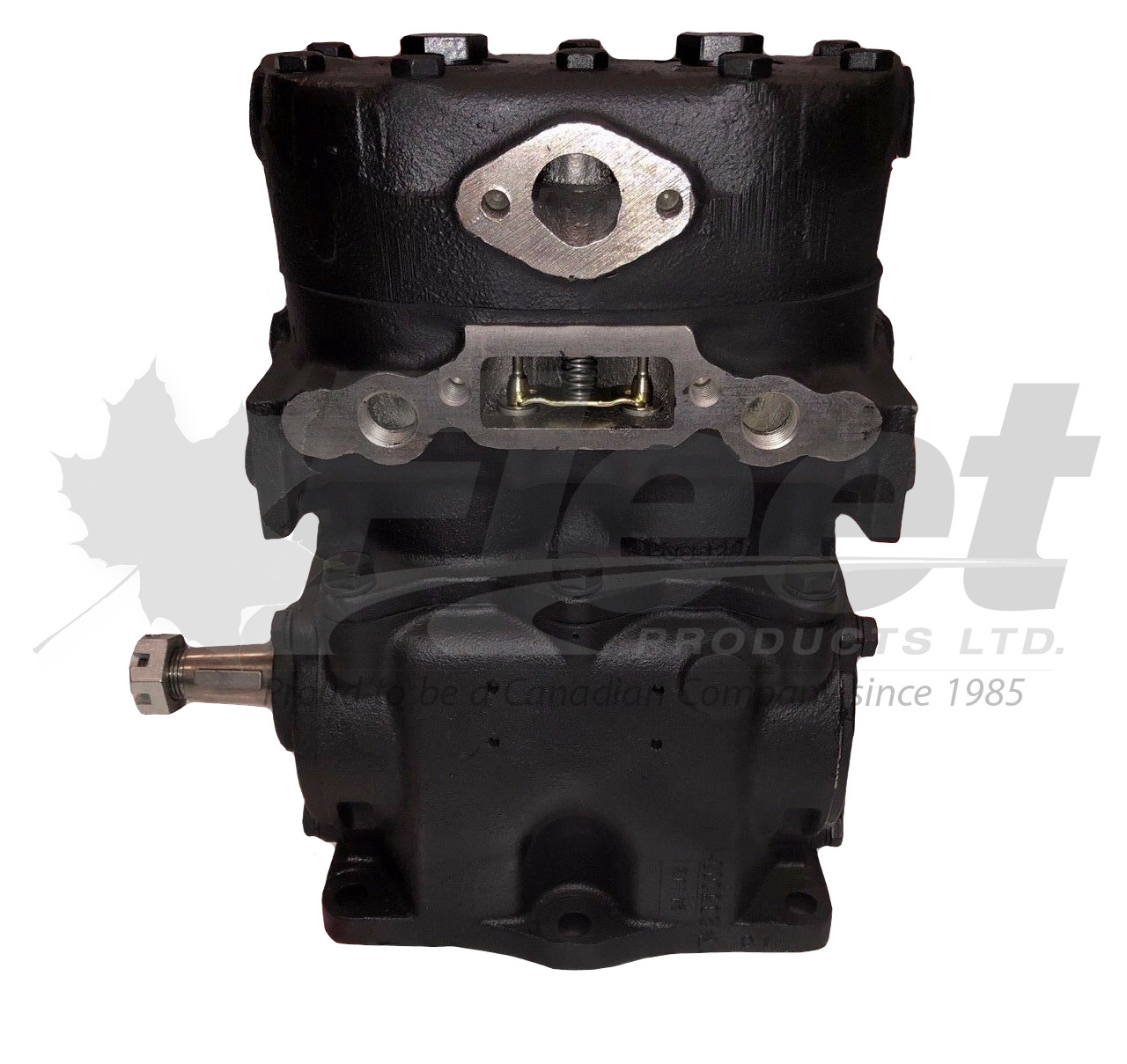

227440X – TF-500 PULLEY DRIVE COMPRESSOR (4-HOLE BASE)
PART NUMBER(S):
Fleet Products: 227440X (Remanufactured) | OE: 227320TP, BX227320X, 745227320
DESCRIPTION:
Model: TF-500 Pulley Drive Compressor
Vehicles: Heavy trucks, semi trucks, 18-wheelers, commercial trucks
• Compressor Type: Reciprocating, Single Cylinder
• CFM (Rated): Approx. 12.0 @ 1,250 RPM
• Cooling: Water Cooled
• Mounting: 4-Hole Base
• Drive: Pulley
• Air Inlet Port: Right (viewed from rear)
• Air Outlet Port: Right (viewed from rear)
• Discharge Type: Flange
• Notes: Base oil feed option available
• Weight: Approx. 46 lbs
• Condition: Remanufactured
Applications:
Water-cooled TF-500 series compressor designed for belt-driven air brake systems in severe-duty Class 8 vehicles and commercial tractors. Engineered for durability in high-heat environments with robust flange mount.
CROSS-REFERENCE(S):
227320TP, BX227320X, 745227320, 227320, 227321, 227404X, 227565, 228302, 228307, 228317, 228320, 228330, 228450, 228645, 228828, 277057, 277386, 277397, 277398, 277399, 278405, 278557, 279356, 279864, 280602, 281169, 295435C91, 297762C92, 398568C91, 398568C92, 4310010492215, 861448R91, 861448R92, 861448R93, 97193R91, 990007C91, 990178C91, 990210C91, 997065R91, BW 227320X, H227320X, MID227320X, EBN227320X, R955227320X, N5084, N5085, N5098AW, N5098CW, N5098DW, N5098EW, N5098W, N5303B, N5303D, N5303F, N5303H, N5303M, N5303S, N5303W, N5303X, N5308A, N5308C, N5308D, N5309, N5310, N6300, 226278, 226436, 226526, 226717, 227320X, 227320X-BW
A cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Port orientation is always viewed from the rear
✔ Mount on 4-hole base flange; verify base oil feed plug if not used
✔ Use new gaskets for air and water ports during installation
✔ Belt pulley must be properly tensioned to avoid bearing damage
✔ Confirm head rotation and shaft alignment based on vehicle setup
PICTURE USED FOR WEBSITE PURPOSE ONLY
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
