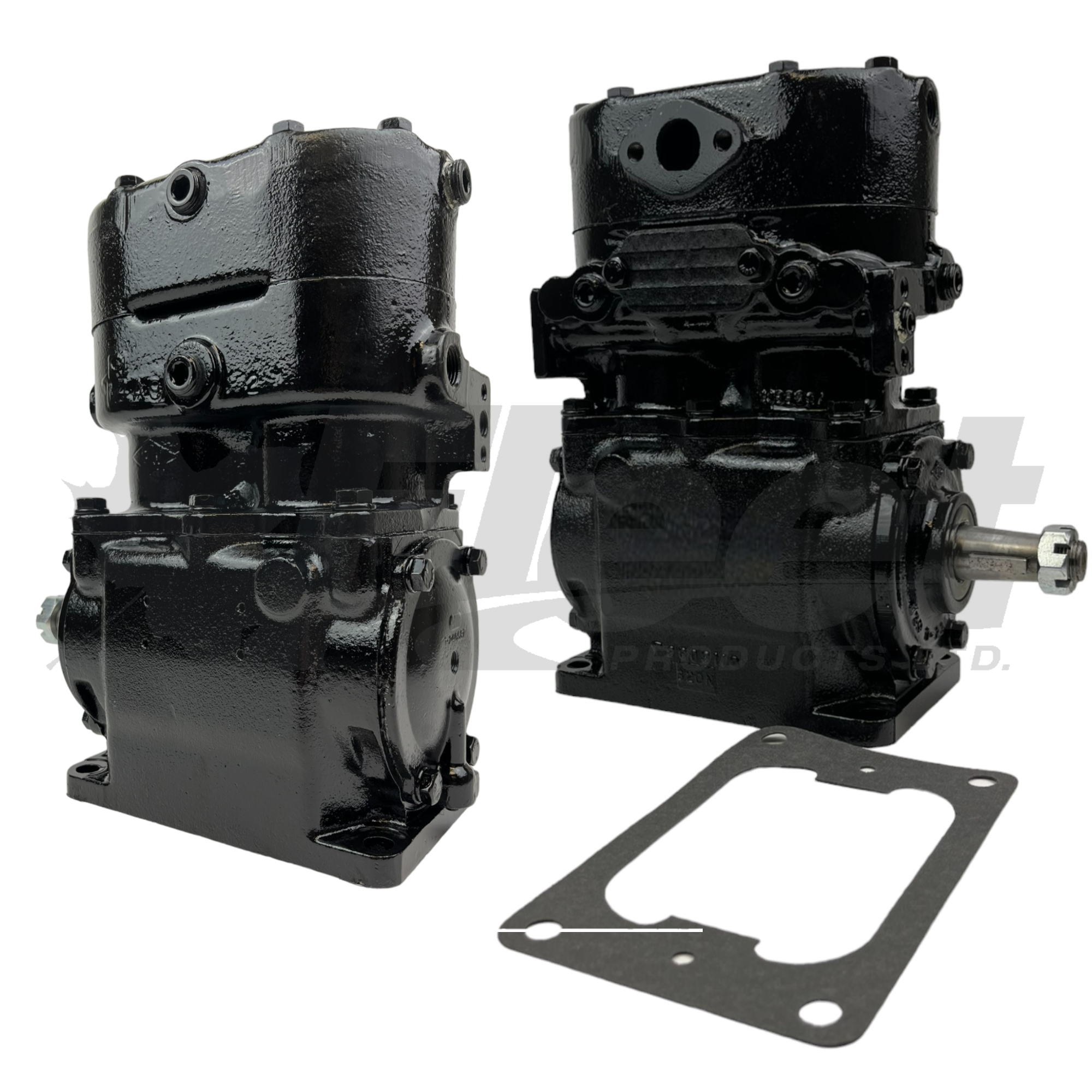

TF-500 PULLEY DRIVE COMPRESSOR – REMAN
PART NUMBER(S):
Fleet Products: 227322X (Reman) | OE: TF-500, 227322, 9N2619
DESCRIPTION:
Model: TF-500 Pulley Drive (Bendix/Reman)
Vehicles: Heavy trucks, semi trucks, 18 wheelers, commercial trucks (N/A)
• Bore Size: 2.75 in.
• Stroke: 1.50 in.
• Rated Displacement: 16.1 CFM @ 1250 RPM
• Mounting: 4-Hole Base Mount
• Drive Type: Pulley/Belt Driven
• Cooling: Water Cooled
• Head Rotation: Right
• Block Rotation: Right
• Discharge Type: Top/Flange
• Air Inlet Port: Right
• Air Outlet Port: Right
• Base Oil Feed Option: Yes
• Rotatable Head: Yes
• Approximate Weight: 46 lbs.
• External Shaft Length: 2.14 in.
• Overall Height: 11.42 in.
• Overall Width: 4.79 in.
• Overall Length: 8.93 in.
Applications:
The TF-500 Pulley Drive compressor is designed for use in air brake systems for heavy trucks, semi trucks, 18 wheelers, and commercial trucks. This pulley-driven, water-cooled compressor offers a rotatable head for easier installation and a base oil feed option. It is engineered to provide robust air supply for braking systems, helping to maintain optimal performance under demanding conditions. EL13020X Compressors may also be used for this application.
CROSS-REFERENCE(S):
227322TP, 175227322, 745-227322X, BX227322XA cross-reference listing means this part is a suitable replacement for the part numbers listed. Please confirm all ports and dimensions match your application before installing.
IMPORTANT INSTALLATION NOTES:
✔ Ensure correct alignment of the pulley and drive components during installation.
✔ Confirm compatibility with vehicle air brake system and ensure all ports match before installation.
✔ Follow correct installation procedures to ensure proper water cooling and oil feed routing.
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
