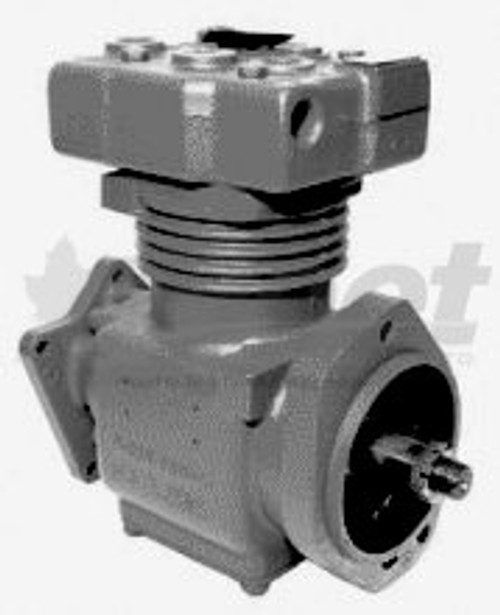

BX-2150 CAT COMPRESSOR
PART NUMBER(S):
Fleet Products: 107526X (Remanufactured) | Replaces OE: Bendix: 106879, 106880, 107526, 107550, 107738, 107913, 107946, 108727, 109113, 109114, 65207 | Caterpillar: 7E2303, 7E3879, 9Y8061
DESCRIPTION:
Model: BX-2150 CAT Compressor
Vehicles: Caterpillar 3116 engine platforms
• Compressor type: Single-cylinder air brake compressor
• Air inlet: Left
• Air outlet: Top
• Cooling: Water-cooled head, air-cooled crankcase
• Mounting: Flange mount
• Drive type: Engine drive / pulley-driven
• Shaft type: Tapered shaft, thru-drive
• Cylinders: 1
• Bore x stroke: 3.375 in x 1.468 in
• Displacement at 1250 RPM: 9.5 CFM
• Maximum RPM: 3000 RPM / 2200 RPM turbocharged
• Horsepower at 1250 RPM / 120 PSIG: 1.7 HP
• Coolant flow: 2.5 gpm maximum / 0.5 gpm minimum
• Maximum boost: 15 PSIG turbocharged
• Temperature range: 250°F inlet / 400°F discharge
• Unload pressure: 60 PSIG naturally aspirated / 85 PSIG turbocharged
• Oil pressure: 5 PSIG idle / 15 PSIG running
• Minimum discharge line size: 1/2 in ID
• Minimum coolant line size: 3/8 in ID
• Minimum oil supply line size: 3/16 in ID
• Minimum oil return line size: 1/2 in ID
• Minimum air inlet line size: 5/8 in ID
• Minimum unloader line size: 3/16 in ID
Applications: Designed for Caterpillar 3116-powered trucks, semi trucks, and vocational vehicles requiring a BX-2150 compressor configuration. Provides compressed air for air brake and auxiliary air systems where flange mount, tapered shaft, thru-drive, left inlet, and top outlet layout match the original CAT engine setup.
CROSS-REFERENCE(S):
107526, 109201, 0R3403, 4P5433, 65207, 7E2303, 7E3879, 9Y8061, 106879, 106880, 107550, 107738, 107913, 107946, 108727, 109113, 109114, 065481, 109219, 7E3871
A cross-reference listing means this part may be a suitable replacement for the listed part numbers. Always verify fitment before installation.
IMPORTANT INSTALLATION NOTES:
✔ View port orientation from the rear of the compressor
✔ Torque cylinder head bolts to 175–225 in-lbs
✔ Use installation gaskets for flange mount installation
✔ Verify pulley and tapered shaft alignment with CAT engine setup
SOLD AS REMANUFACTURED | CORE RETURN REQUIRED
Built to OEM standards | thoroughly cleaned, inspected, and tested to ensure durability, performance, and reliability in demanding applications.
