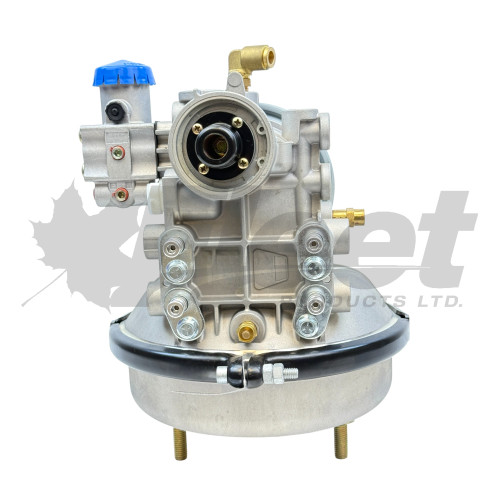

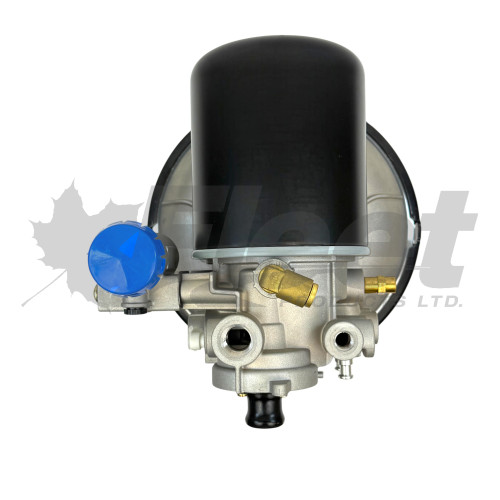

109478PGX - MODEL IP COALESCING AIR DRYER (24V)
PART NUMBER(S):
Fleet Products: 109478PGX (New) | OE: 109478X, 065613, 109478
DESCRIPTION:
Model: IP Coalescing Air Dryer
Vehicles: Heavy-duty trucks and trailers with 24V electrical systems
• Heater Voltage: 24 Volt
• Supply Port: 1/2" NPT
• Delivery Port: 1/2" NPT
• Control Port: 1/4" NPT
• Cartridge Type: Desiccant (Coalescing)
• Filtration: In-line filtration system
• Drain Valve: Automatic, governed-controlled purge
• Extended Purge Port: 1/8-27 NPT (typically plugged)
• Cartridge Thread: 1 1/4-7 UNC-2B
• Minimum Operating Temperature: -40°C (-40°F)
• Mounting: Flange-mounted; bracket and wiring harness not included
• Function: Removes solid, liquid, and aerosol contaminants to extend brake system life
• Safety Valve Opening Pressure: 200 PSI (based on AD-IP platform)
• Operation: Automatic purge cycle with hard-seat purge valve
• Heater/Thermostat Rating: 24V (12V version rated at 90W; wattage for 24V not specified)
• Clearance for Cartridge Removal: 0.50"
• Condition: Brand new, built to OEM-grade reliability
Applications:
Engineered for 24V heavy-duty truck and trailer air brake systems. This unit integrates a coalescing filter and automatic drain cycle to maximize moisture and contaminant removal—ensuring consistent, reliable air brake performance in commercial duty cycles.
CROSS-REFERENCE(S):
109478X, 065613, 109478, N065613, 109478RX, ZZ109478X
A cross-reference listing means this part may be a compatible replacement for the part numbers listed based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Mounting bracket and wiring harness not included – install per OEM specifications
✔ Confirm heater voltage compatibility before electrical hookup
✔ Connect supply, delivery, and control ports accurately; torque to OEM specs
✔ Test purge cycle and drain valve operation after installation
✔ Replace desiccant cartridge regularly to maintain filtration performance
