PREMIUM AIR DISC BRAKE PADS – MERITOR EX225L2
PART NUMBER(S):
Fleet Products: PE1370HK (New) | Replaces OE: FMSI D1370, 8480-D1370, 8435-D1323 | A-Line ALP1370-KZx | WVA 29189, WVA29189, S2929102, S2929103 | Abex ADB1370 | Meritor 2252L2CD, 2252L2DA, KIT2252L2DA, KIT2252L2CD, KIT2252L2CD2, KIT2252L2CG, KIT2252L2CG2, KIT2252L2LD, KIT2252L2DD, KIT2252LCM7400, MMD1370AF, MMD1370A | Automann ATD1370HD, 141.D1370SD23N, 141D1370SD, 106.13700 | Haldex MPBD1370HD, MPBD1370CV, MPBD1311CV, MPBD1311XT | Frasle ESD1370 | Durabrake BP641 | BWP BP1311 | Fettic CFD-120 | Bendix AMPM1370BA
DESCRIPTION:
Model: EX225L2CA / EX225 L2
Vehicles: Freightliner Cascadia, Volvo VNL Series, Nova Bus, Van Hool, Setra, Prevost, Neoplan, MAN, DAF, Iveco, Mack, trucks, trailers, and buses with EX225L2 dual-piston calipers

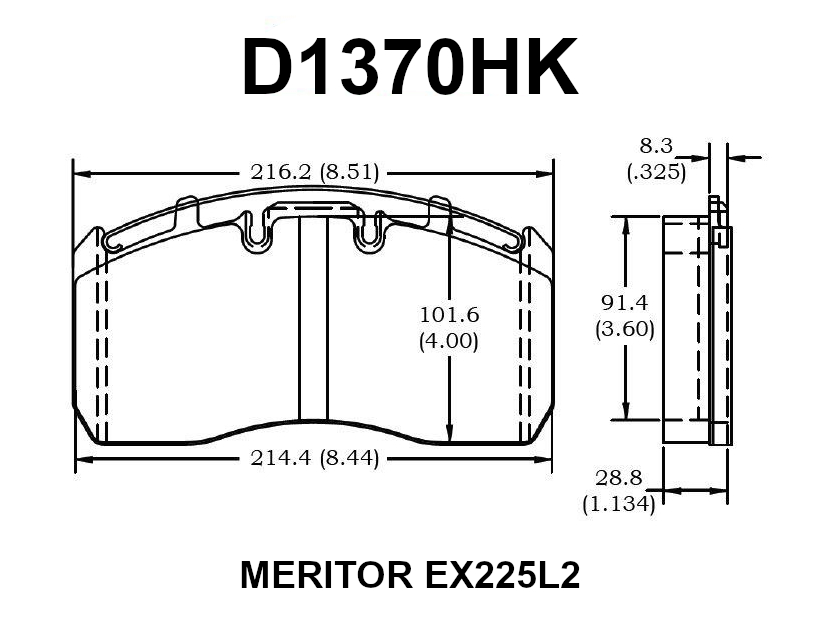

• Length: 216.10 mm
• Width: 108.80 mm
• Thickness: 29.00 mm
• Pad Shape: FMSI D1370
• Graphite metallic (copper-free, asbestos-free)
• Temp: -40°C to +650°C
• Galvanized steel backplate (MRS retention)
• Rotor Compatibility: 430–440 mm OD (min 36.5 mm thickness)
• Hardware included
Applications:
For dual-piston Meritor EX225L2 calipers only. Found in heavy-duty commercial Freightliner and Volvo trucks and multiple European-style buses. Provides OE-grade performance for highway and severe service, with thermal stability and long life.
CROSS-REFERENCE(S):
D1370HK, DSHP1370, DSTP1370, H-291370, 9183.1, GBADP1370, DOND1370, OTR-D1370, AGO-D1370, D1370HP, TDA KIT2252L2CG, TDA KIT2252L2CD, 8235KIT2252L2CG, MA741, MA761
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ For use only on EX225L2 dual-piston calipers—do not use on EX225 or single-piston calipers
✔ Replace brake pads in full axle sets to ensure even performance and wear
✔ Clean and deglaze rotor surfaces before installation
✔ Replace pad retention springs (Meritor P/N 430009) at each pad change
✔ Perform bedding: 10 stops from 30 mph at 0.4g deceleration
✔ Caliper bolts torque: 210 Nm ±5%
✔ Pad spring bolts torque: 35 Nm
✔ Never lubricate friction surfaces; contamination leads to squeal and performance loss
