PREMIUM AIR DISC BRAKE PADS – MERITOR D-LISA
PART NUMBER(S):
Fleet Products: PE1312HK (New) | Replaces OE: FMSI D1312, D1312-8427, 8427-D1312, D1312-, 8427 | A-Line ALP1312-KZx | WVA 29090 | Abex ADB1312 | Meritor 68932068NZP, 689320968NZP, MDP5019, MDP5025, MDP5042, MDP5061, MMD1312AF | Automann 9183.1, 141.D1312FS, ATD1312HD | Haldex MPBD1312HD, MPBD1312CV, MPBD1312XT | Textar 2909006 | Frasle ESD1312 | Durabrake BP601 | Fettic CFD-F120 | Marathon CBP-RN01 | MCI 04-01-1007, 04-01-1019 | Volvo 20825594, 20850194, 3093919, 3093939, 8550611, 85105485, 85506111 | Ride-Air RADV1312
DESCRIPTION:
Model: Meritor D-Lisa
Vehicles: Freightliner, Kenworth, Knorr-Bremse, Mack, Meritor, Peterbilt, SAF Holland/Neway, SMB, Spartan, Sterling, Thomas Built, Volvo, MCI, Neoplan, Prevost, Volvo Transit Bus, IMT, Wabash DuraPlate HD/ADV, Great Dane Everest/Legacy, Utility 3000R/4000D, MCI D-LISA trailers

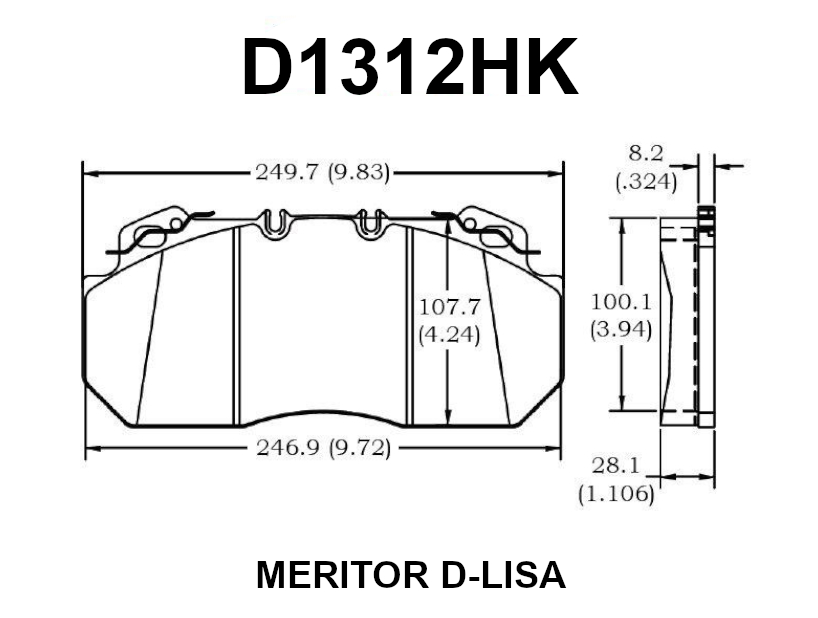

• Length: 249.60 mm
• Width: 114.50 mm
• Thickness: 28.20 mm
• Pad Shape: FMSI D1312
• Ceramic-reinforced friction (asbestos-free)
• OE-grade performance and wear life
• Positive molded, post-cured (MRS retention system)
• Rotor Compatibility: 434 mm OD systems
Applications:
Built for Meritor D-Lisa single-piston reaction beam calipers used across heavy-duty trailer platforms and select European-style Volvo, Renault, and DAF applications.
IMPORTANT INSTALLATION NOTES:
✔ Install only on vehicles equipped with Meritor D-Lisa calipers
✔ Replace pads in complete axle sets to ensure uniform performance
✔ Do not substitute on EX225, SB7, or ADB22X platforms
✔ Inspect and resurface rotors if lateral runout exceeds 0.05 mm
✔ Follow Meritor torque specs: caliper bolts 210 Nm ±5%, spring bolts 35 Nm
✔ Perform pad bedding with 10 stops from 30 mph at 0.4g deceleration
✔ Confirm pad retention hardware—may not be included in all kits
✔ Discard pads if thickness reaches 25 mm (wear limit)
