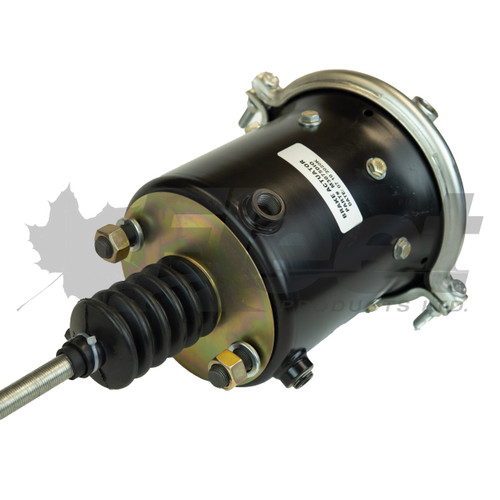

TYPE 24 MAXIBRAKE – I SERIES UNIVERSAL SPRING BRAKE
PART NUMBER(S):
Fleet Products: M2475DIO | OE: Haldex MA-Series: MA15760, MA15761, MA15773, MA15775, KSM2475KC-175NN, KSM2460KC-800NN , CAT: 9K0885, 8R2488, Navistar: SKA814651, 9270101126, 4HD50
DESCRIPTION:
Model: Type 24 MAXIBRAKE I Series Spring Brake
Vehicles: Off-road heavy equipment trailers using Type 24 air brake systems
• Type: Type 24 spring brake chamber (24 in² diaphragm area)
• Push Rod: 8" length, 5/8"-18 UNF
• Ports: dual 3/8"-18 NPTF
• Mounting: 4.75" stud spacing, 5/8"-11 UNC studs
• Max Pressure: 125 PSI
• Spring: #75 steel alloy (epoxy-coated)
• Housing: all-steel, powder-coated
• Piston: aluminum with nylon bearing
• Deeper spring cavity design
• Non-caging (no manual release)
Applications:
Designed for off-road trailers and equipment requiring a Type 24 brake chamber. Provides reliable spring force for parking and emergency braking under extreme environmental and mechanical demands.
CROSS-REFERENCE(S):
CAT: 9K0885, 8R2488 | Komatsu / KSM: KSM2460KC-800NN, KSM2475KC-175NN, KSM2475GC175NN, KSM2475GC800NN, KSM2475GCS47001, KSM2475KC800NN, KSM2475GC-175NN, KSM2475GC-800NN, KSM2475KC-800NN, KM2475 | Haldex MA-Series: MA15760, MA15761, MA15773, MA15775, MA15775X, MA15775M1D | Mack: HDX MA15775, HMA15775X | Ford OE: D8HZ2225A |International / Navistar: SKA814651 | European OEM: 9270101126, 4HD50 | Misc : Series 24, 2475, Maxi Brake Type 24, 2475DO, 4102095 | CMA15775, C-MA15775, ZZMA15775, MBIMA15775, MIDMA15775, 5396-MA15775, 767653016924
A cross-reference listing means this part may be a compatible replacement for these part numbers based on OEM or distributor data.
IMPORTANT INSTALLATION NOTES:
✔ Confirm proper alignment of air ports and push rod orientation during installation
✔ Ensure push rod length and thread type match existing hardware
✔ Chamber must not be manually released; air system must build pressure before operation
✔ Mounting studs must be torqued to OEM specs using 5/8"-11 UNC fasteners
✔ Use clean, dry air supply to prevent premature seal wear
✔ Always follow OEM air brake system testing procedures after installation
